Headlamp Control Module (HCM) [2018-2020]: Removal

Remove the headlamp, refer to: HEADLAMPS

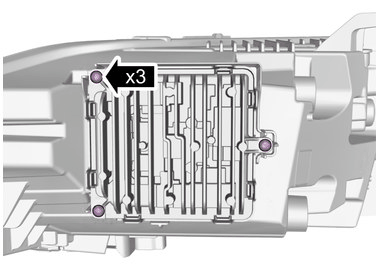

GLL1003521Courtesy of VOLVO CARS CORPORATION

Remove the screws.

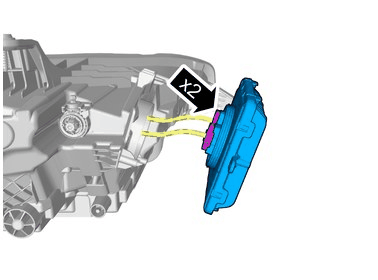

GLL1028829Courtesy of VOLVO CARS CORPORATION

Disconnect the connectors.

Remove the marked part.

Repeat all method steps for the other side.
