Engine Coolant Temperature Sensor [2020, B4204T23]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Courtesy of VOLVO CARS CORPORATION

NOTE:

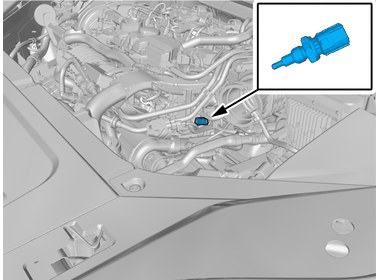

Orientation view

Drain cooling system, draining, filling, and bleeding, refer to: COOLING SYSTEM - DRAINING, CHARGING AND BLEEDING

Remove the air filter housing, refer to: AIR CLEANER HOUSING

Courtesy of VOLVO CARS CORPORATION

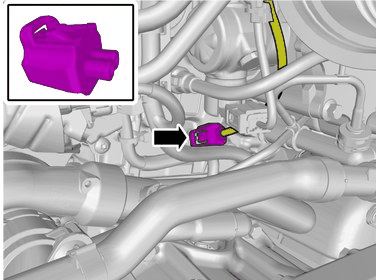

Disconnect the connector.

Courtesy of VOLVO CARS CORPORATION

NOTE:

Use a new seal.

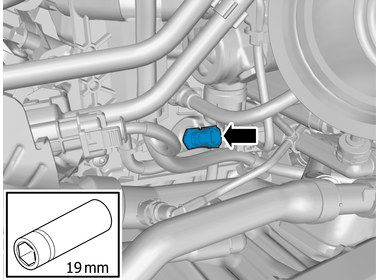

Remove the marked part.

Torque: Temperature sensor coolant to engine, 22Nm
