Multimedia Module [2014-2018]: Removal

CAUTION:

Make sure that any disc is removed.

Courtesy of VOLVO CARS CORPORATION

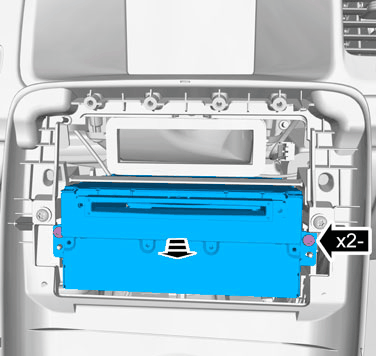

Remove center console, refer to: CENTER CONSOLE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

CAUTION:

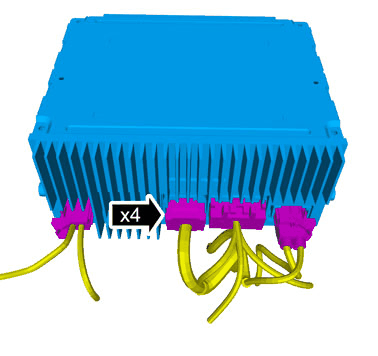

Make sure that the fiber optic cables are not bent to a radius of less than 25 mm.

NOTE:

Make sure that the component terminals are not bent or damaged.
