Cover, Control System [2017, B4204T23, TG-81SC | 2017, B4204T27, TG-81SC AWD]: Installation

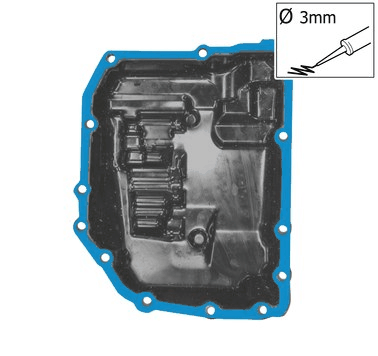

NOTE:
The component must be installed within 5 minutes of applying the sealant.
Use: Chemical gasket, 1161409
CAUTION:
Take extra care not to damage the seal.

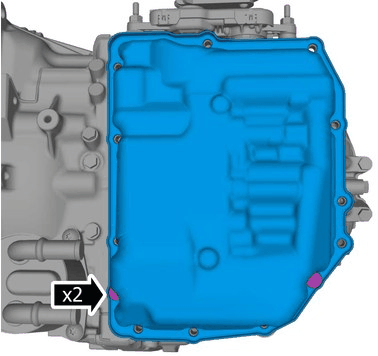

Install the screws.
Tighten the bolts.
Torque: Cover, control system, 13Nm

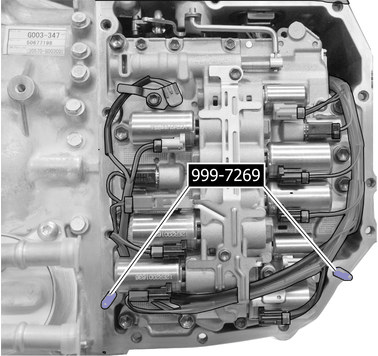

Remove the Special Tool.

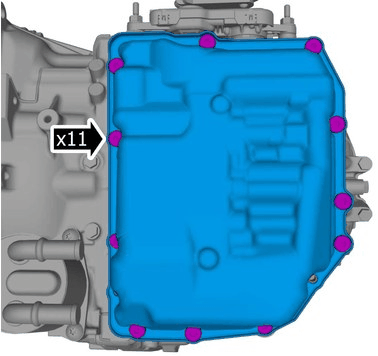

Install the screws.
Tighten the bolts.
Torque: Cover, control system, 13Nm
To install, reverse the removal procedure.
Fill oil transmission, refer to: TRANSAXLE OIL
