Lambda Probe, Front [2017, B4204T27]: Removal

Courtesy of VOLVO CARS CORPORATION

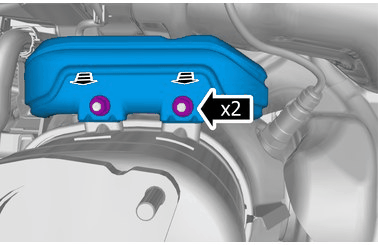

Loosen the screws.

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

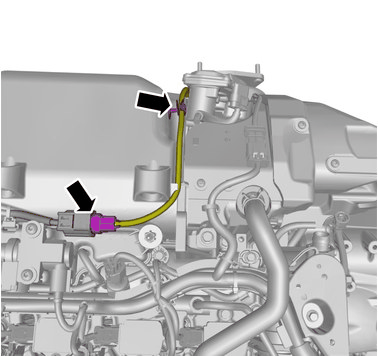

Release the connector's catch.

Disconnect the connector.

Loosen the clip.

See information about lifting points body, refer to: JACKING POINTS BODY

VEHICLES EARLY VERSION

Courtesy of VOLVO CARS CORPORATION

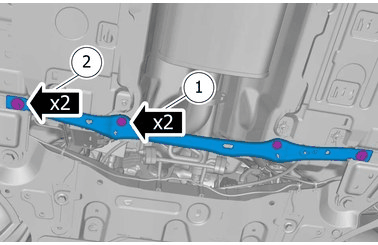

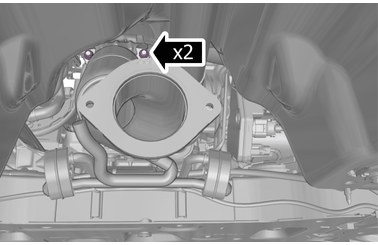

Remove the screws.

1. Torque:  M8, 24Nm
2. Torque:  M10, 50Nm

VEHICLES LATE VERSION

Courtesy of VOLVO CARS CORPORATION

Remove the screws.

1. Torque:  M8, 24Nm
2. Torque:  M10, 50Nm

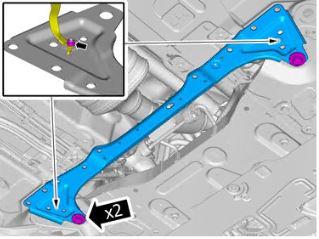

Courtesy of VOLVO CARS CORPORATION

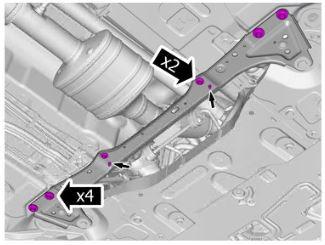

Remove the screws.

Remove the nuts.

Remove the marked part.

Torque:Subframe to chassis (rear screws)

• Stage 1: 140 Nm
• Stage 2: 150 °

ALL VEHICLES

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

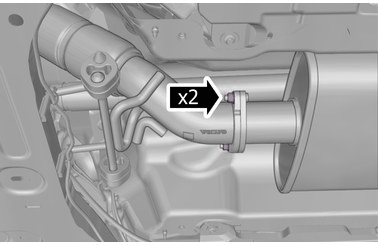

Remove the nuts.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

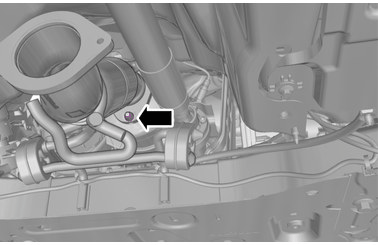

Remove the nut.

Torque:  M8, 24Nm

Courtesy of VOLVO CARS CORPORATION

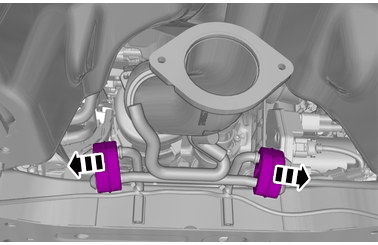

Courtesy of VOLVO CARS CORPORATION

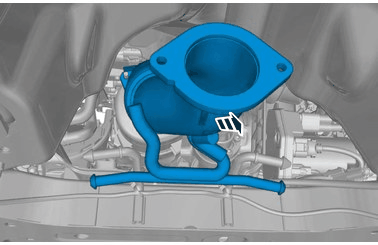

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the nuts.

Torque:  M6, 10Nm

Remove the marked part.

Courtesy of VOLVO CARS CORPORATION

Remove the marked part.

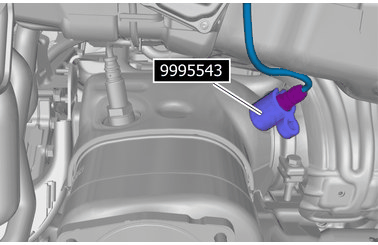

Special Tool: 999 5543

Torque:  Lambda probe, tightening, 45Nm
