Lambda Probe [2014-2016, B4204T11]: Removal: Notes

NOTE:

Removal steps in this procedure may contain installation details.

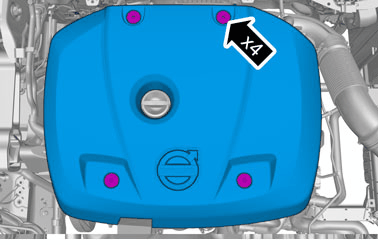

GLL1026387Courtesy of VOLVO CARS CORPORATION

Loosen the screws.

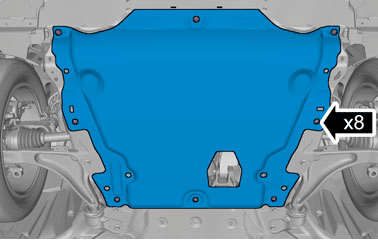

GLL177542Courtesy of VOLVO CARS CORPORATION

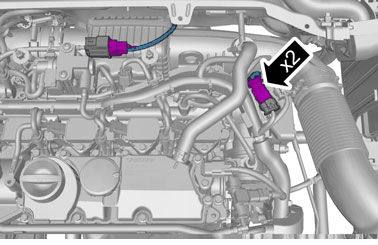

GLL1035438Courtesy of VOLVO CARS CORPORATION

Release the lock.

Disconnect the connectors.

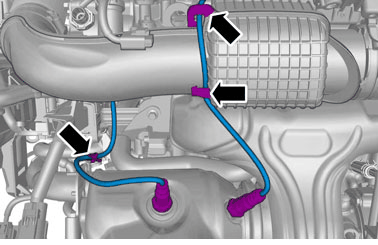

GLL1019002Courtesy of VOLVO CARS CORPORATION

Remove the cable harness clips.

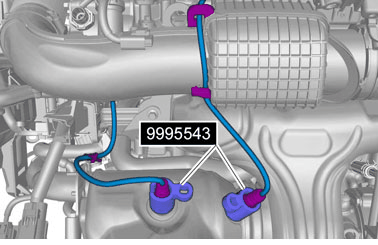

GLL1028388Courtesy of VOLVO CARS CORPORATION

Refer to: Special Tool: 999 5543

Torque:  Catalyst monitor sensor, 45Nm
