Removing The Fuel Pump (FP) / Level Sensor

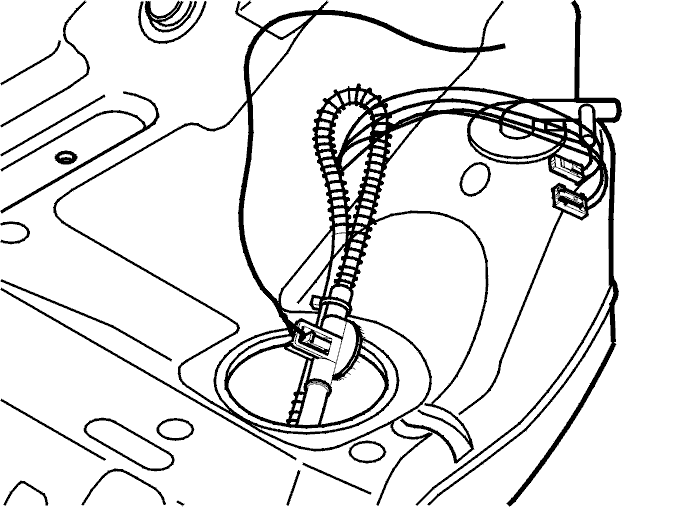

Fig 1: Identifying Left-Hand Fuel Level Sensor And Connectors

Courtesy of VOLVO CARS CORPORATION

To remove the left-hand level sensor see: LEVEL SENSOR FUEL TANK LEFT, REPLACING

Secure a wire in the area of the ejector. The wire must be sufficiently long that it reaches over to the opposite side of the tank with some excess remaining to ensure that it does not slide into the tank. The wire is needed to pull the hoses and wiring back to the left-hand side of the tank after the fuel tank unit has been replaced.

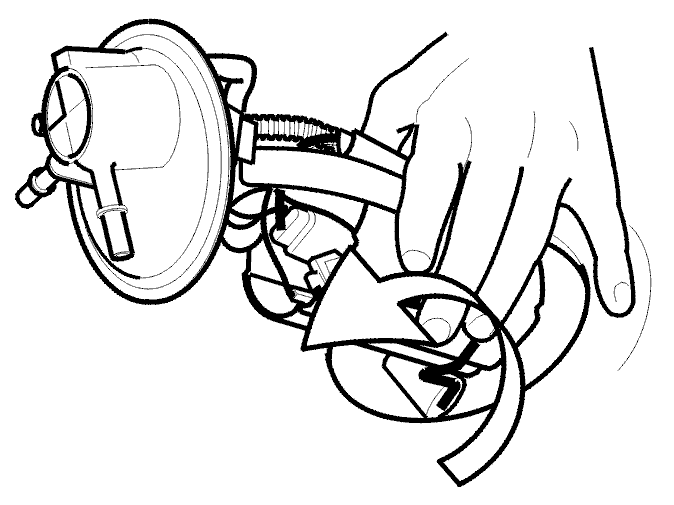

Fig 2: Removing Fuel Pump Module

Courtesy of VOLVO CARS CORPORATION

Grip around the right-hand fuel pump (FP) / level sensor reservoir. Pinch the float in its lowest position.

Carefully and slowly pull up the holder. Carefully work the holder out.

Pull the hoses out from the tank without pulling up the entire wire from the right-hand hole in the tank.

Remove the wire from the fuel pump (FP) / level sensor ejector.
