Disassembling Secondary Lock

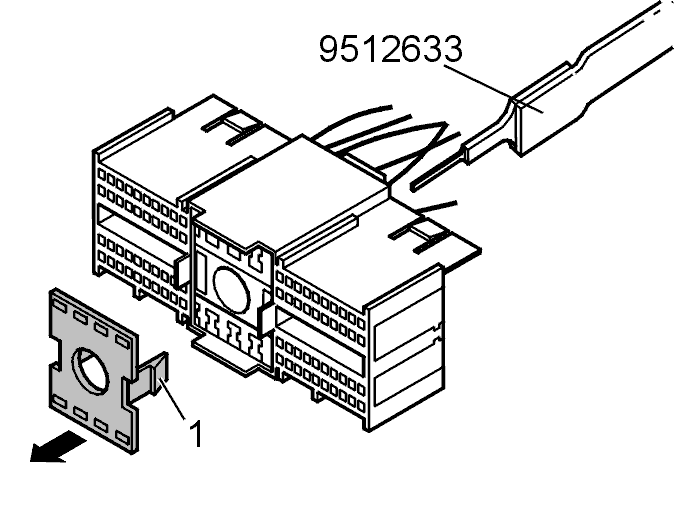

Fig 1: Identifying Secondary Lock Pressed Out From Cable Side Using Tool 951 2633
GLL101465Courtesy of VOLVO CARS CORPORATION

Press the secondary lock out from the cable side, for example using tool: see 9512633 or an electrician's screwdriver, as shown in the illustration.
