Parking Assistance Module [2011-2018]: Removal

GLL166009Courtesy of VOLVO CARS CORPORATION

Remove right side panel cargo compartment. Refer to SIDE PANEL LOADSPACE

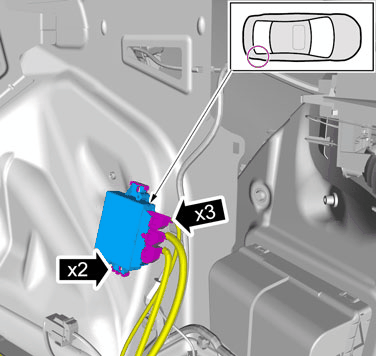

GLL172649Courtesy of VOLVO CARS CORPORATION

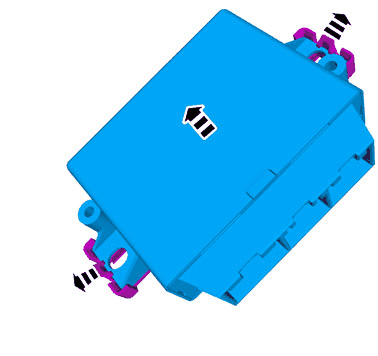

GLL172650Courtesy of VOLVO CARS CORPORATION
