Installing The Oil Line

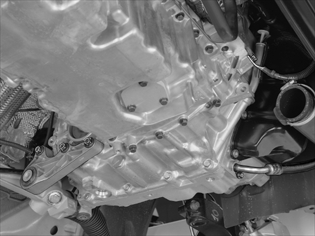

Fig 1: Identifying Oil Line And Ground Lead

Courtesy of VOLVO CARS CORPORATION

Place a container underneath the gearbox.

Install:

• the oil line. Use a new O-ring. Tighten. See: TIGHTENING TORQUE
• the ground cable on the transmission
• the torque rod mounting to the transaxle, 3 x M10. Tighten.
