Connect The Bleeding Unit

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

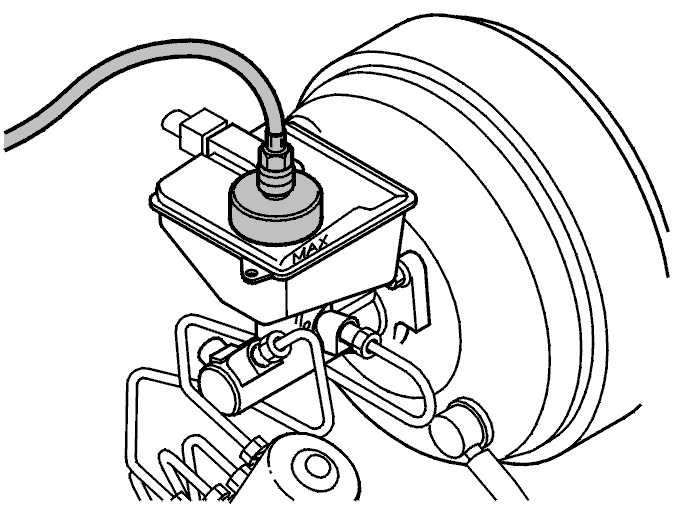

Fig 1: Bleeding Unit Connected to Brake Fluid Reservoir
GLL104530Courtesy of VOLVO CARS CORPORATION

Connect bleeding unit to brake fluid reservoir. Follow manufacturer's instructions for connecting and using bleeding unit.

Pressurize the brake system. Check the brake fluid reservoir connector.

Raise the car and remove the wheels
