Bleeding Left Front Wheel

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

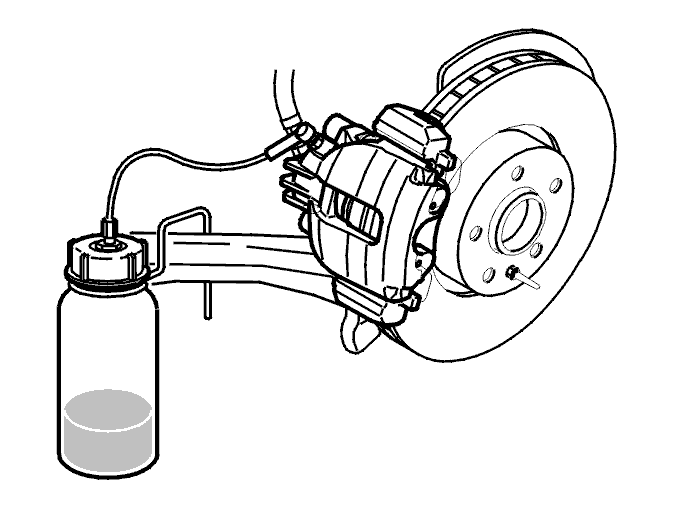

Fig 1: Collection Bottle Hose Connected to Bleed Nipple
GLL104536Courtesy of VOLVO CARS CORPORATION

Remove the protective cap from the bleed nipple. Connect the hose from the collection bottle.

Open the bleed nipple. Close it when there are no more air bubbles in the fluid coming out of the hose.

Tighten the bleed nipple.

Remove the hose from the bleed nipple. Reinstall the protective cap.

Bleeding other wheels

Continue to bleed the other wheels as for the left front wheel

Check for leakage from the bleed nipples.
