General Information

C30/S40/V50

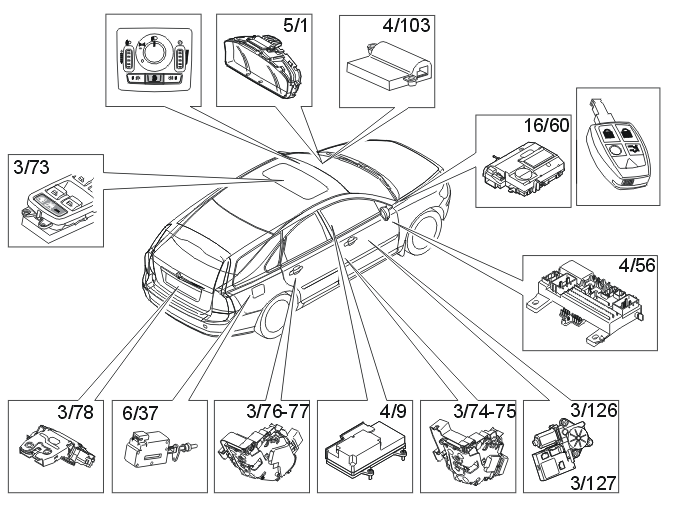

Fig 1: Identifying Central Locking System

Courtesy of VOLVO CARS CORPORATION

C70

Fig 2: Identifying Central Locking System On C70

Courtesy of VOLVO CARS CORPORATION

The central locking system contains a number of functions. The system is monitored by the central electronic module (CEM). The central electronic module (CEM) communicates with the constituent units, whether directly connected or connected in series, via the CAN network.

The functions covered are:

• standard locking function (total or 2 stage)
• deadlocking
• private locking mode
• child-proof lock (S40/V50)
• unlocking the trunk lid/tailgate
• unlocking the fuel tank filler cover
• light functions (local lighting and approach lights)
• indication of the status of the doors and hatches
• remote unlocking
• automatic locking function
• re-locking
• lockable storage compartment (option C70)
• lock for ski hatch (C70).
