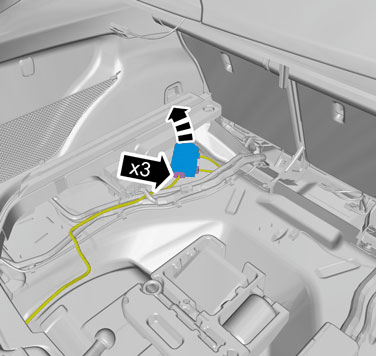

Trailer Module (TRM) [2015-2016, B5254T12]: Removal

Courtesy of VOLVO CARS CORPORATION

Remove left side, side panel cargo space. Refer to: SIDE PANEL LOADSPACE

Courtesy of VOLVO CARS CORPORATION

NOTE:

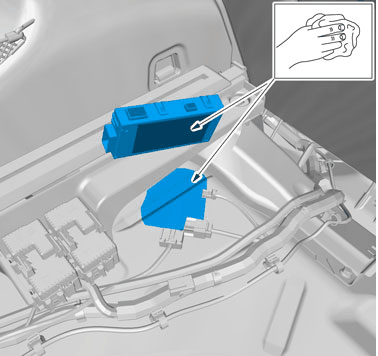

Make sure that the component terminals are not bent or damaged.

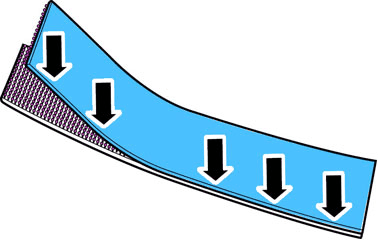

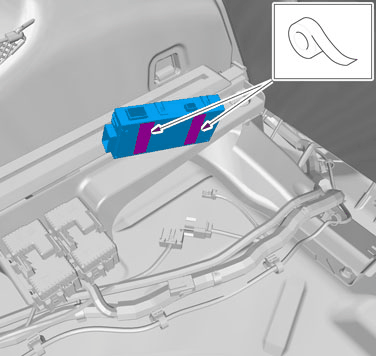

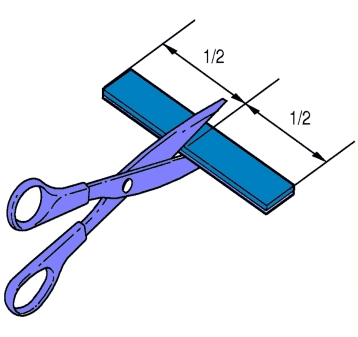

Follow the instructions regarding components with double-sided adhesive tape, refer to: COMPONENTS WITH DOUBLE-SIDED TAPE

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION

Courtesy of VOLVO CARS CORPORATION
