Power Liftgate Module [2012-2017]: Removal
NOTE:
Removal steps in this procedure may contain installation details.
Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

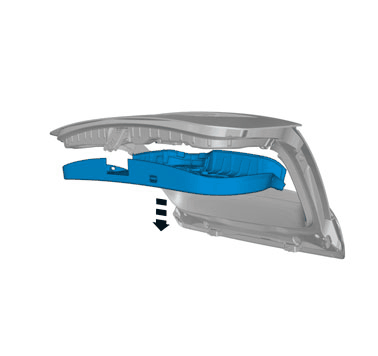

Remove the marked part.
Disconnect the connectors.

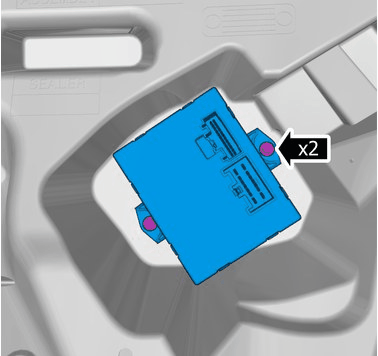

Remove the screws.
Torque: M6, 10Nm
Remove the marked part.
VEHICLES MANUFACTURED IN CHINA, VIN-NUMBER STARTING WITH: LVY
Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL
Remove the marked part.

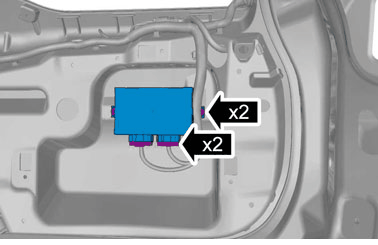

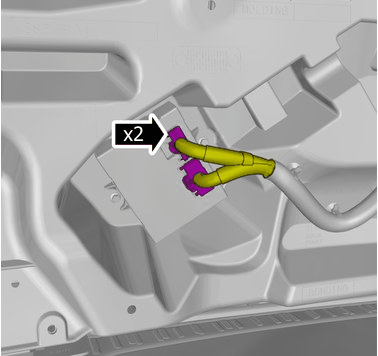

Disconnect the connectors.
Remove the screws.
Torque: M5, 5Nm
Remove the marked part.
