Power Liftgate Module [2009-2011]: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the tailgate/trunk lid trim panel, refer to: TAILGATE/TRUNK LID PANEL

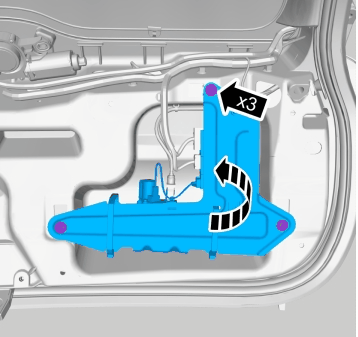

GLL165610Courtesy of VOLVO CARS CORPORATION

Torque:  M6, 10Nm

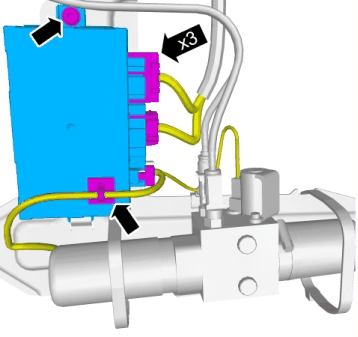

GLL165611Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.
