Piston Cooling Valve

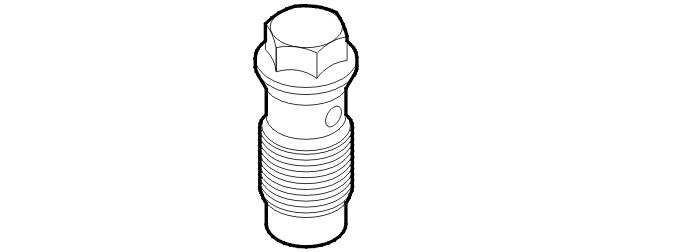

Fig 1: Identifying Piston Cooling Valve

GLL140505

Courtesy of VOLVO CARS OF NORTH AMERICA.

The piston cooling valve regulates the oil flow by letting oil through the piston cooling nozzles.
