Installing The Spring On The Right-Hand Side
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.
Compress the spring.
Use hydraulic spring tensioner: see 9512911 with claw: see 9512897 .
Install:
- the grommet
- the spring.
WARNING:
It is essential that the correct claw for the vehicle model is used. Always check that the number punched on the claw matches the number indicated in the method.
NOTE:
Make sure that the spring engages in the link arm's grooves.
Using a transmission jack, carefully lift under the control arm so that the screw for the shock absorber can be installed.
NOTE:
Always make sure that the car is not lifted off the hoist when working with the transmission jack.

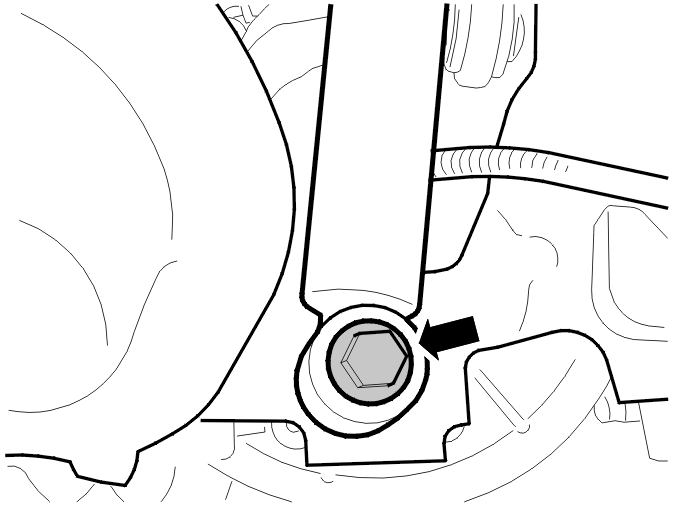

Install the screw in the shock absorber. Tighten. See: TIGHTENING TORQUE .
