Cooling Duct, Engine Block

WARNING: This page is about a different car, the 2010 Volvo V70, 2009 Volvo V70, and 2008 Volvo V70. However, it is still accessible from the selected car via links, so may be relevant.

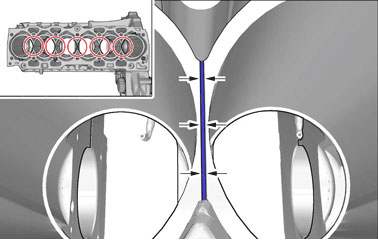

Fig 1: Identifying Cooling Passage
GLL181002Courtesy of VOLVO CARS CORPORATION
Length........ mm 0.85-1.15
