Power Liftgate Module: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove left side, side panel cargo space, see SIDE PANEL LOADSPACE

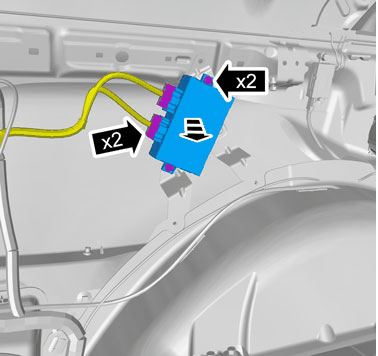

Fig 1: Power Liftgate Module
GLL178610Courtesy of VOLVO CARS CORPORATION
NOTE:

Make sure that the component terminals are not bent or damaged.

Torque:  M6

10 Nm
