Power Liftgate Module: Removal

NOTE:

Removal steps in this procedure may contain installation details.

Remove the left-hand side panel in the cargo compartment, see SIDE PANEL LOADSPACE

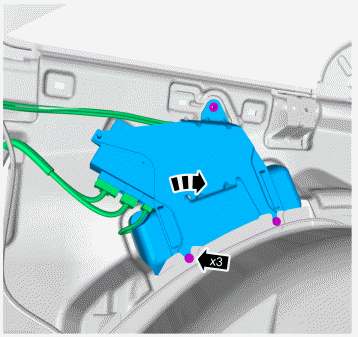

Fig 1: View Of Tailgate Load Sensor Screws

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

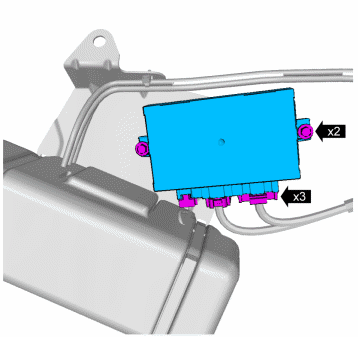

Fig 2: Identifying Component Terminal Screws

Courtesy of VOLVO CARS CORPORATION

NOTE:

Make sure that the component terminals are not bent or damaged.

Torque: M6

10 Nm
