Specifications For Stop Button For Seat Belt

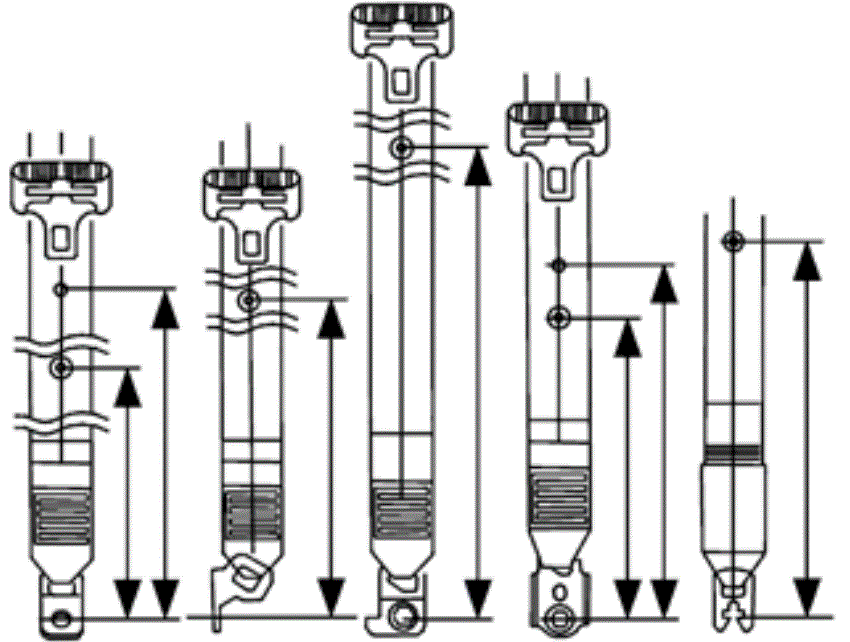

Fig 1: Checking That Belt Does Not Fray When Spike On Stop Is Pressed Through Belt

Courtesy of VOLVO CARS CORPORATION

Model	Market	Seat belt type	Distance to the first stop (mm)
S80 (07-)	ALL	Right front	300±10 mm
	ALL	Left front	300±10 mm
	ALL	Right rear	440±10 mm
	ALL	Left rear	440±10 mm
	ALL	Center seat, rear	315±10 mm
