Ignition Coil (V8): Removal

NOTE: Removal steps in this procedure may contain installation details.

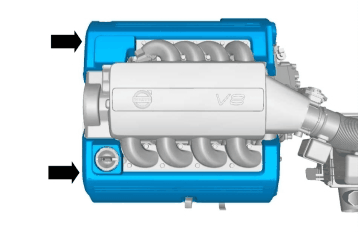

Fig 1: Identifying Side Engine Covers

Courtesy of VOLVO CARS CORPORATION

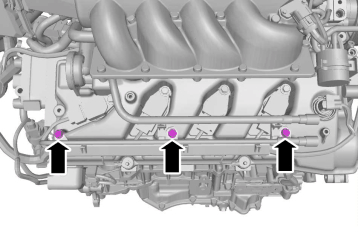

Fig 2: Identifying Ignition Coil Connectors And Bolts

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

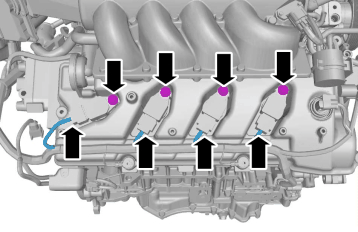

Fig 3: Identifying Ignition Coils

Courtesy of VOLVO CARS CORPORATION

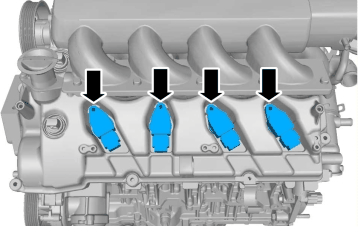

Fig 4: Identifying Bracket Screws

Courtesy of VOLVO CARS CORPORATION

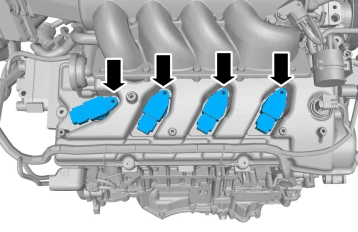

Fig 5: Identifying Ignition Coil Screws and Connectors

Courtesy of VOLVO CARS CORPORATION

Torque: M6

10 Nm

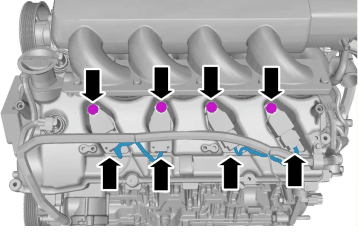

Fig 6: Identifying Coils

Courtesy of VOLVO CARS CORPORATION
