Engine Block, Installing Components

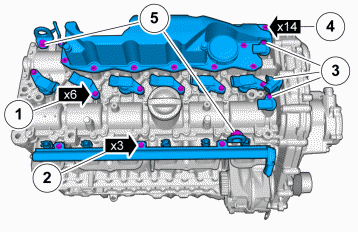

Fig 1: Engine Block Components Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Install the following items:

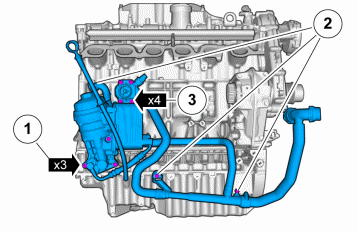

Fig 2: Identifying Component Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Install the following items:

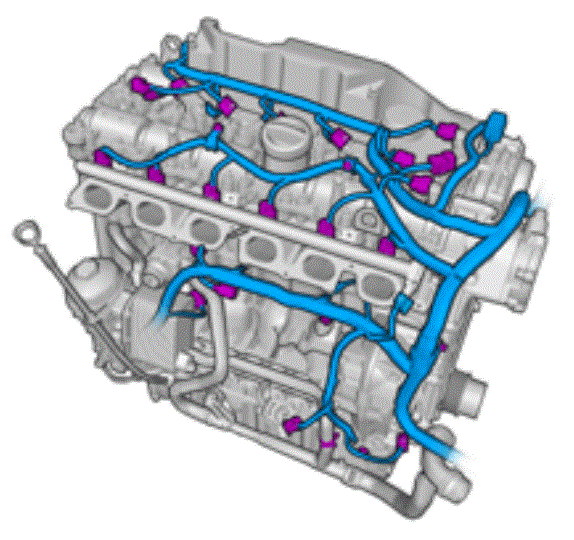

Fig 3: Identifying Cable Harness Connections

Courtesy of VOLVO CARS CORPORATION

Install the cable harness.

Torque: M6

10 Nm

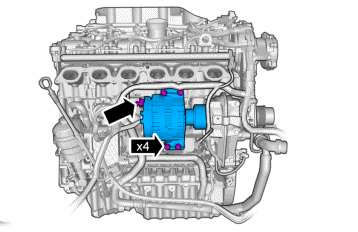

Fig 4: Identifying Component Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Install the generator. See ALTERNATOR

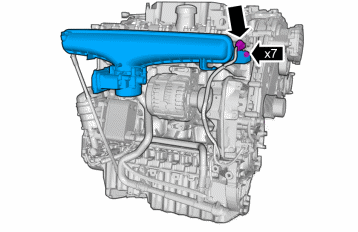

Fig 5: Identifying Induction Pipe Connection And Assembly Bolts

Courtesy of VOLVO CARS CORPORATION

Install the intake manifold. See INDUCTION PIPE

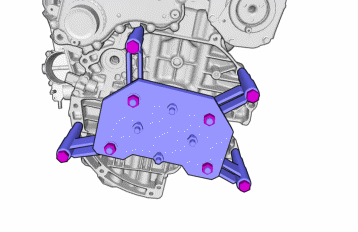

Fig 6: Engine Block Mounted On Engine Mount

Courtesy of VOLVO CARS CORPORATION

Remove the engine from the work stand.

Install the carrier plate. See CARRIER PLATE

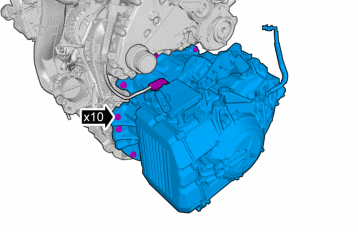

Fig 7: Identifying Transaxle To Engine Block Casing Bolts

Courtesy of VOLVO CARS CORPORATION

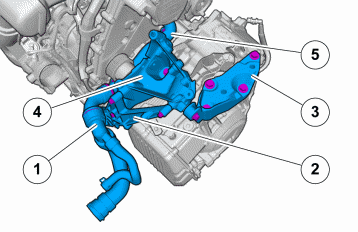

Fig 8: Identifying Auxiliary Brackets

Courtesy of VOLVO CARS CORPORATION

Install the following items:

water pipe (5).
Torque: M6

10 Nm
AC-console (4), console transmission (3), front auxiliary unit console (2). See ACCESSORY DRIVE BELT AND VARIABLE VALVE TIMING (VVT)
radiator hose (1)
