Checking The Function Of The Starter Motor After Start Attempts: Notes

Fig 1: Identifying Ignition OFF

Courtesy of VOLVO CARS CORPORATION

• Ignition off
• Select neutral (automatic transmissions: "N"). Apply the parking brake
• Expose the starter motor relay. Remove the relay.
• Temporarily connect two cables to relay base terminals #3 (30) and #5 (87).
• The function of the starter motor must be checked by temporarily short-circuiting the cables to each other so that the control solenoid is powered and the starter motor engages.

  HINT: A starter motor relay without a protective cover can be used to create the short-circuit. Closes the switches manually.

  NOTE: Do not bridge directly in the relay base or the connections in the base may be damaged.

  Break the circuit after 5 seconds. The starter motor should then stop immediately.

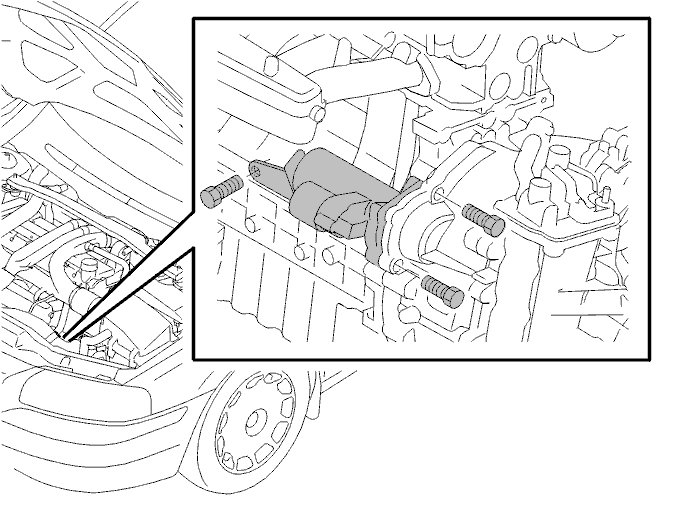

  Fig 2: Identifying Starter Motor And Screws

  Courtesy of VOLVO CARS CORPORATION
  Fig 3: Identifying Starter Motor Relay

  Courtesy of VOLVO CARS CORPORATION

Did the starter motor stop immediately?

• YES

  Refer to REPLACING THE COMPONENT

• NO

  Refer to REPLACING THE COMPONENT
