Installing The Spring: Notes

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2013 Volvo C70, 2012 Volvo C70, 2011 Volvo C70, 2010 Volvo C70, and 2009 Volvo C70. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

For tightening torques, see: TIGHTENING TORQUE .

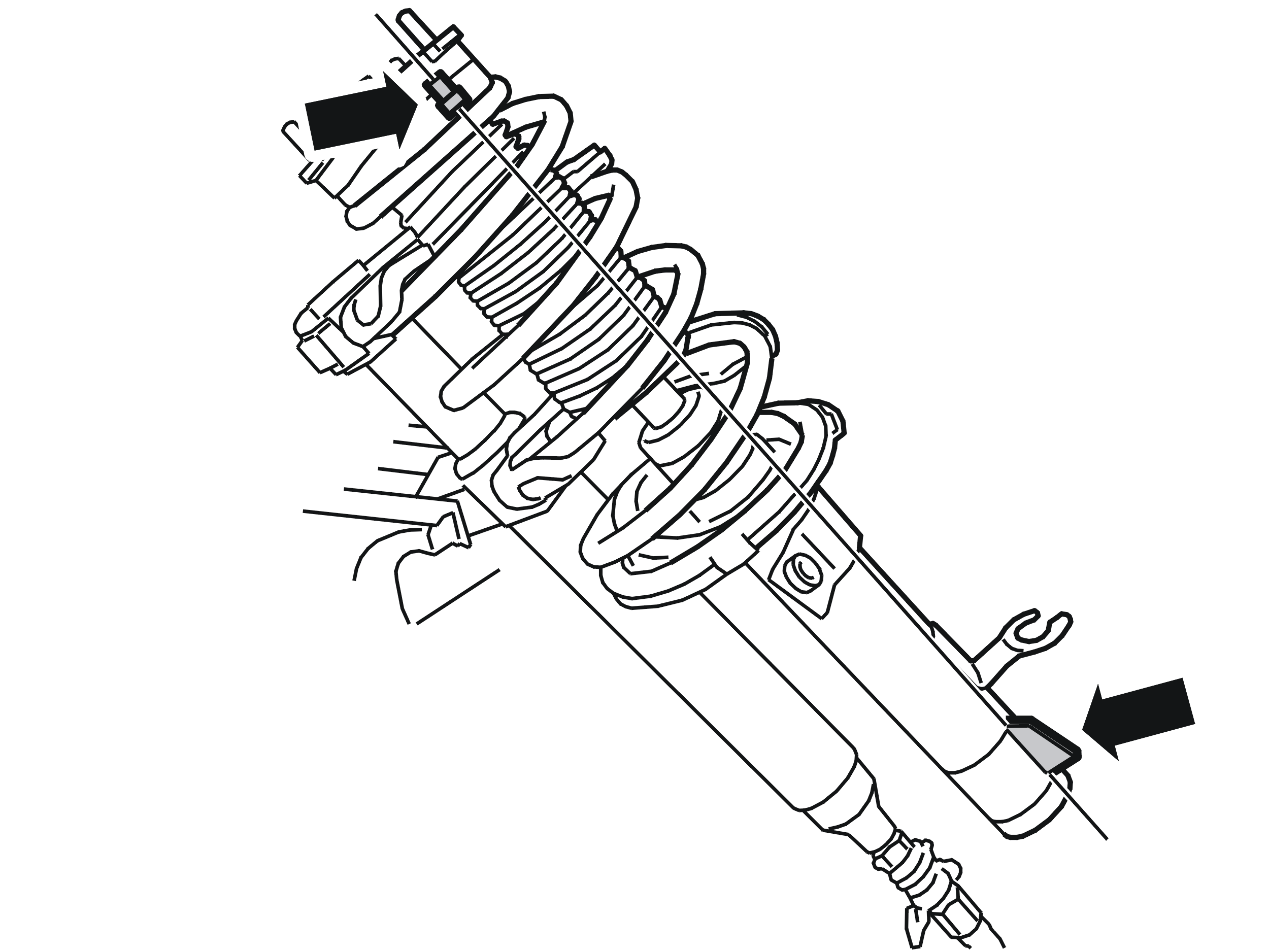

Fig 1: Checking Alignment Of Components

Courtesy of VOLVO CARS CORPORATION

Compress the new spring. Use: see 9512911 together with claws: see 9512914 .

Install:

the spring
the bump stop with the boot
the spring seat
the 1 nut. See: TIGHTENING TORQUE . Use: see 9995500 and a Torx-socket as a counterhold.

NOTE:

Ensure that the spring seat marking is directly opposite the guide for the spring strut when installing the spring.
