Pressure Sensor, Climate Control System V70 Connector End View (7/8)

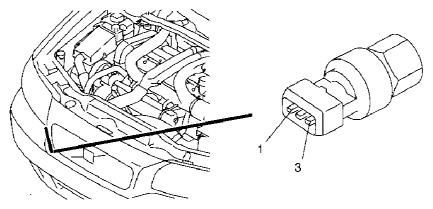

Fig 1: Pressure Sensor, Climate Control System V70 Connector End View (7/8)

G10807756

Courtesy of VOLVO CARS CORPORATION
