Component Location, Headlamp Control Module (HCM) [2007-2011]

WARNING: This page is about a different car, the 2016 Volvo S80, 2015 Volvo S80, 2014 Volvo S80, and 2013 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

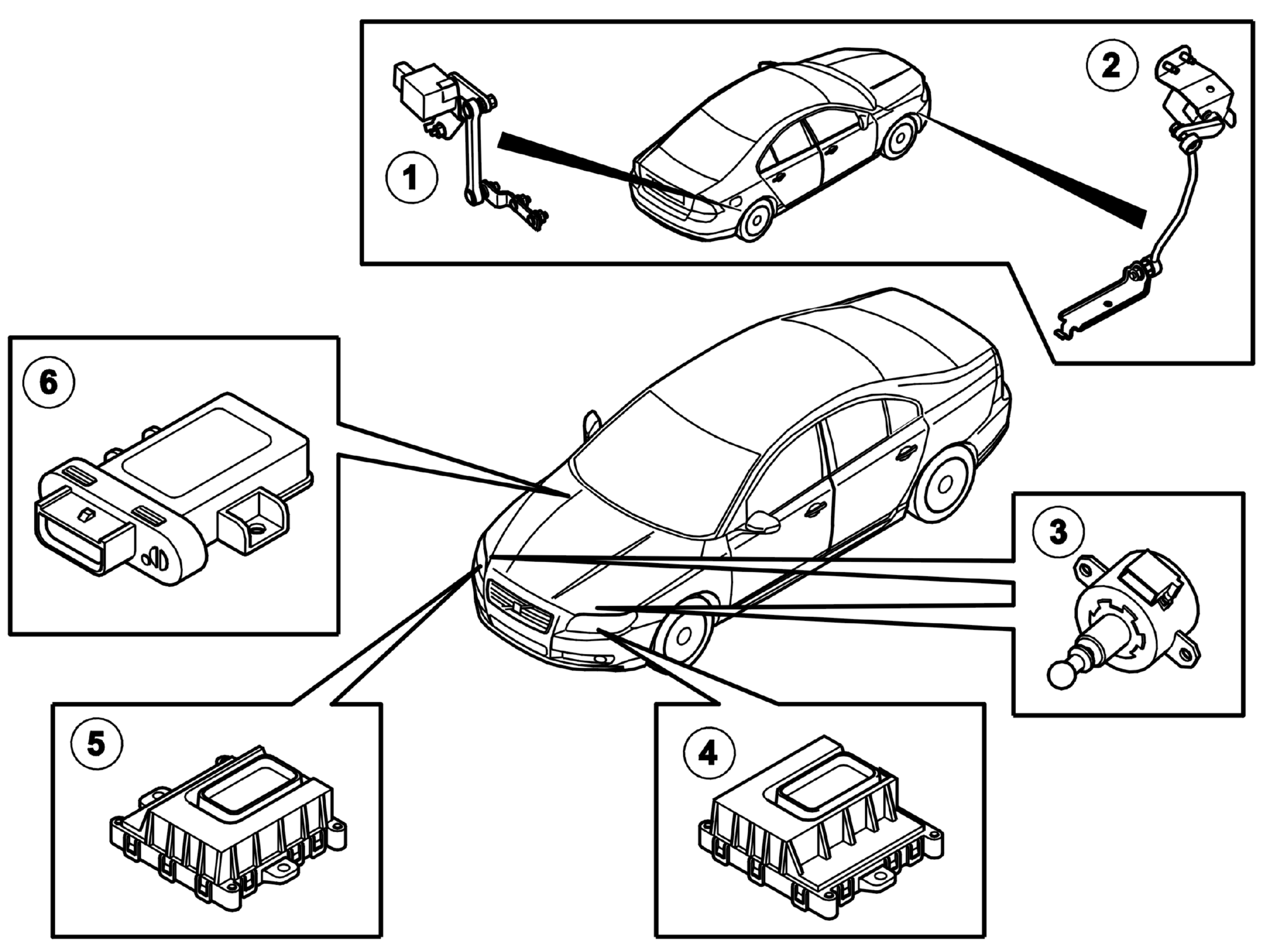

GLL153866Courtesy of VOLVO CARS CORPORATION

Overview

  1. Rear position sensor
  2. Front position sensor
  3. Motors for headlamp levelling (not active headlamps)
  4. Left headlamp control unit (LHCU)
  5. Right headlamp control unit (RHCU)
  6. Headlamp Control Module (HCM)
