Spark Plugs (V8): Removal

NOTE: Removal steps in this procedure may contain installation details.

Remove ignition coil. See REMOVAL

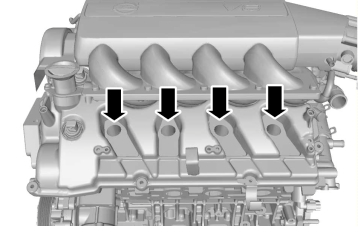

Fig 1: Identifying Spark Plug Removal (1 Of 2)
GLL153798Courtesy of VOLVO CARS CORPORATION

Torque:  Spark plug

25 Nm

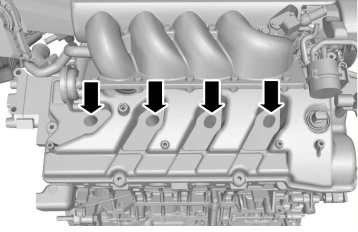

Fig 2: Identifying Spark Plug Removal (2 Of 2)
GLL153799Courtesy of VOLVO CARS CORPORATION

Torque:  Spark plug

25 Nm
