Removing the Splash Guard Under Engine

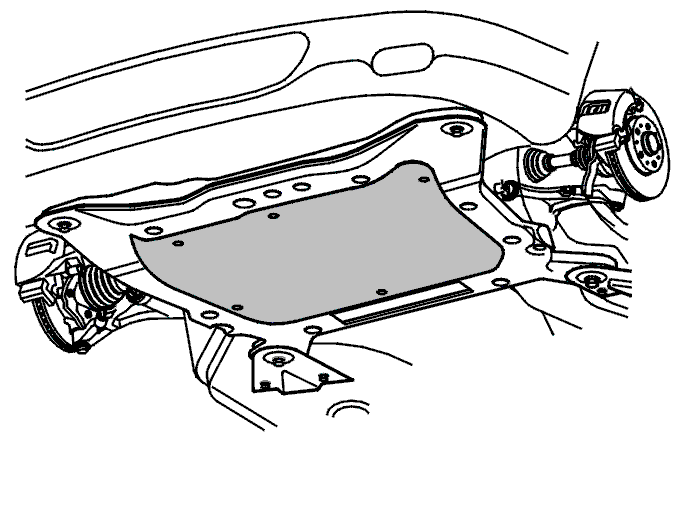

Fig 1: Identifying Splash Guard Under Engine

GLL106857

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the splash guard under the engine.
