Checking the Caster Angle, Front

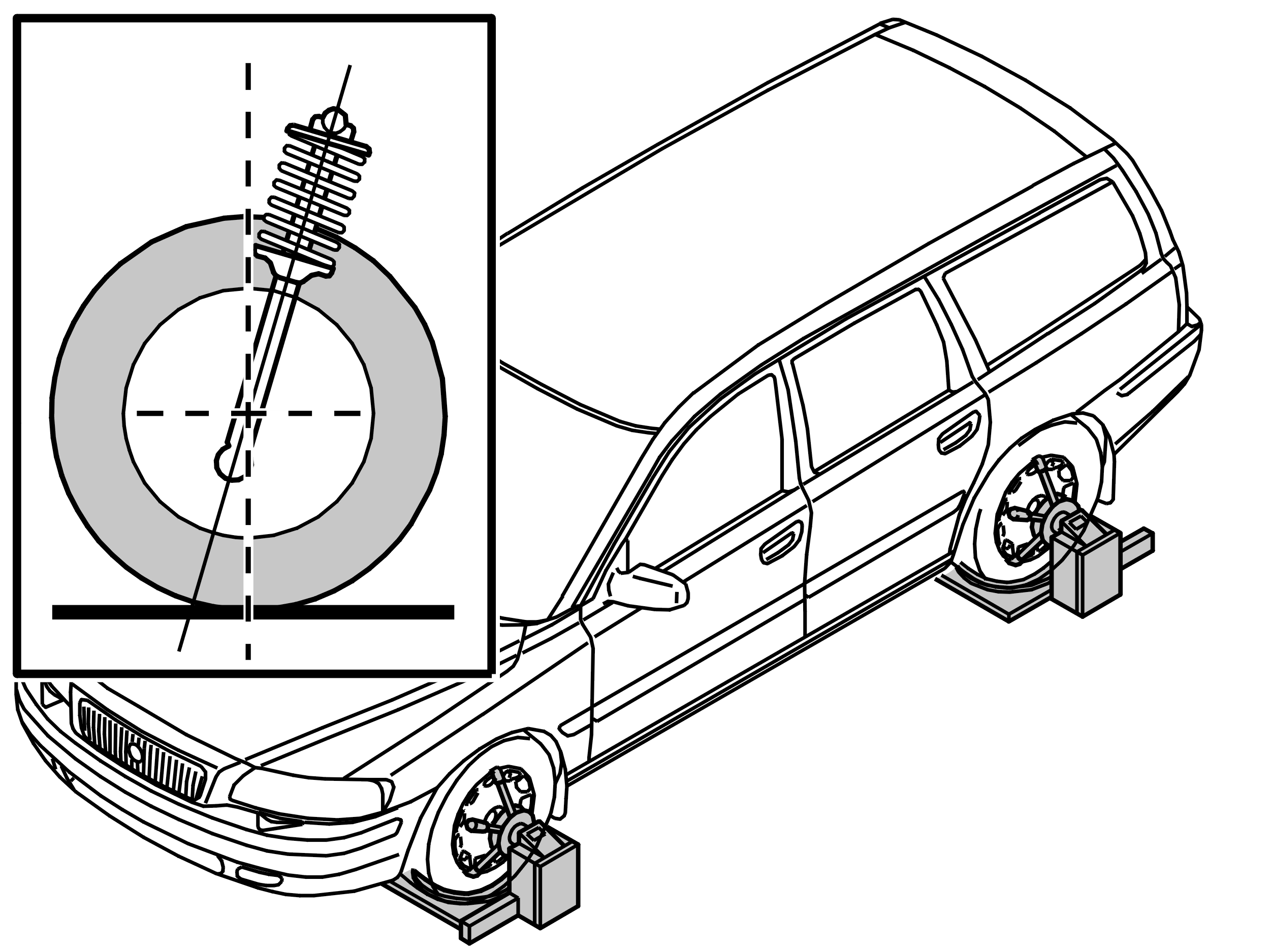

Fig 1: Checking Caster Angle
GLL106676Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the caster angle on both sides.

The correct value is 4.0° 1.0°. The caster angle must not vary by more than 0.25° between the left and right-hand sides.
