Installing The M2D Control Module

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2006 Volvo S80, 2005 Volvo S80, 2004 Volvo S80, 2003 Volvo S80, and 2002 Volvo S80. However, it is still accessible from the selected car via links, so may be relevant.

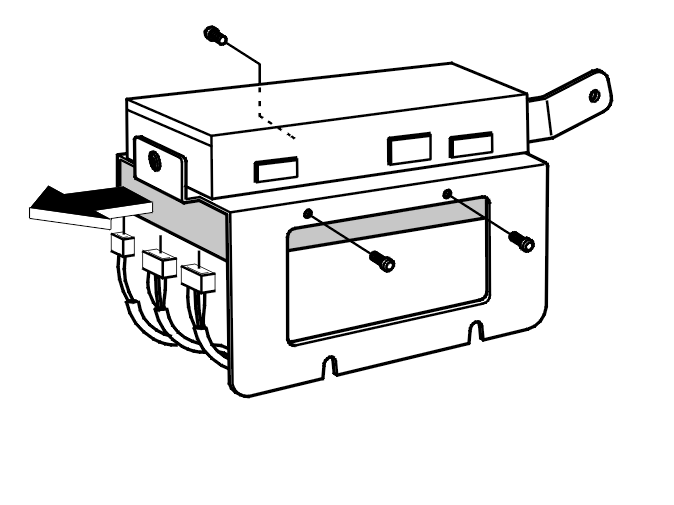

Fig 1: M2D Control Module And Screws
GLL111263Courtesy of VOLVO CARS OF NORTH AMERICA.

Slide the M2D control module into the bracket.

Install the 3 mounting screws for the M2D control module.

Connect the three connectors to the control box.
