Gas Tank, Replacing: Preparations

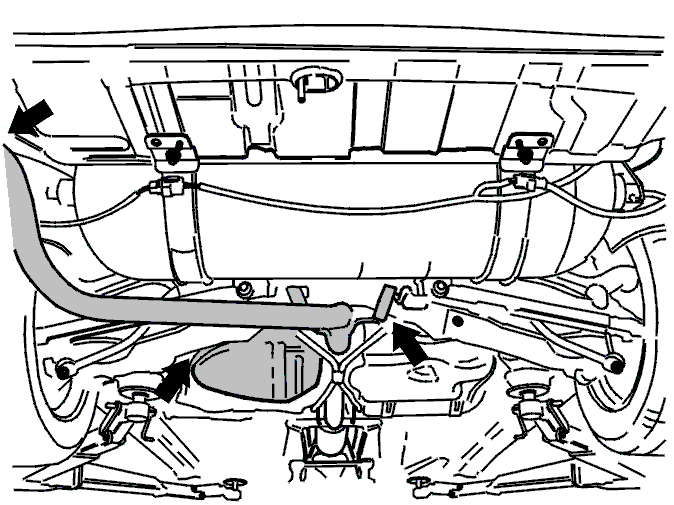

Fig 1: Identifying Exhaust Pipe Rear Section

Courtesy of VOLVO CARS OF NORTH AMERICA.

Drain the gas pipe. See DRAINING THE GAS PIPE (CNG; 2005-2006) or DRAINING THE GAS PIPE (CNG; 2007) .

Drain the gas tank. See DRAINING THE GAS TANK (CNG) .

Raise the car.

Remove the rear section of the exhaust pipe.

Remove the guard for the gas tank.
