Door Cassette

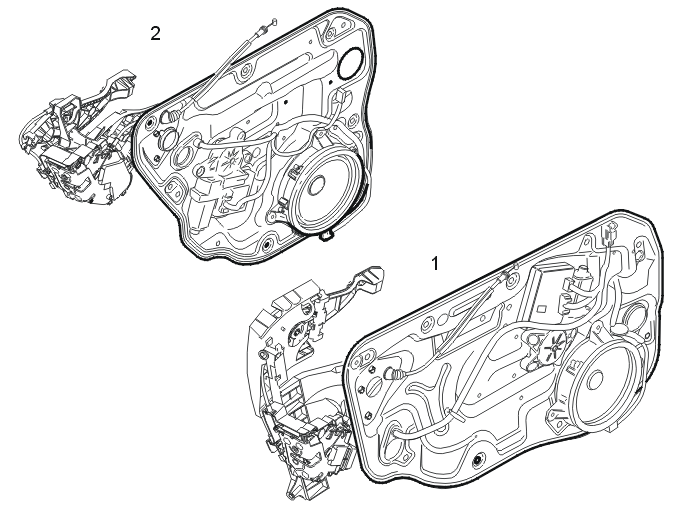

Fig 1: Identifying Door Cassette Function

Courtesy of VOLVO CARS OF NORTH AMERICA.

The purpose of the door cassette is to:

• facilitate the work of installing all the components in the door
• check all the functions before assembly in production
• seal, separate the wet side of the door from the dry side.

Two of the holes in the cassette are used to provide access for removing the glass from the window lift mechanism.
