Disassembling The Connector

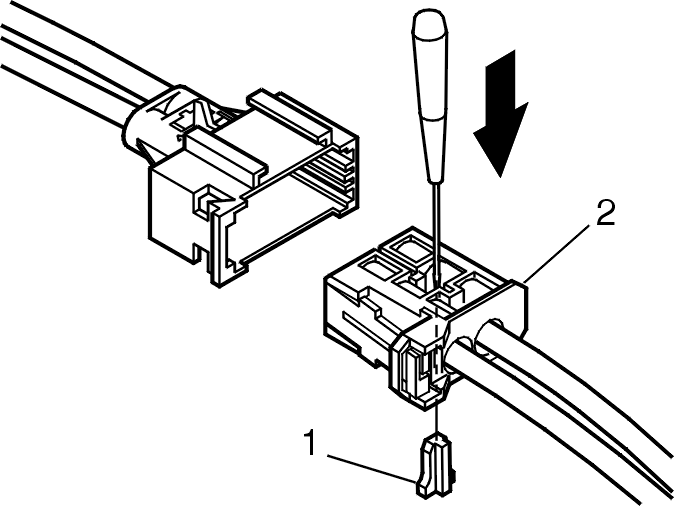

Fig 1: Identifying Catch Pressed Out With Screwdriver

Courtesy of VOLVO CARS CORPORATION

NOTE:

There is one fiber for the input and one for the output signal. The system will not work if the are interchanged.

Press out the catch (1) using a screwdriver.

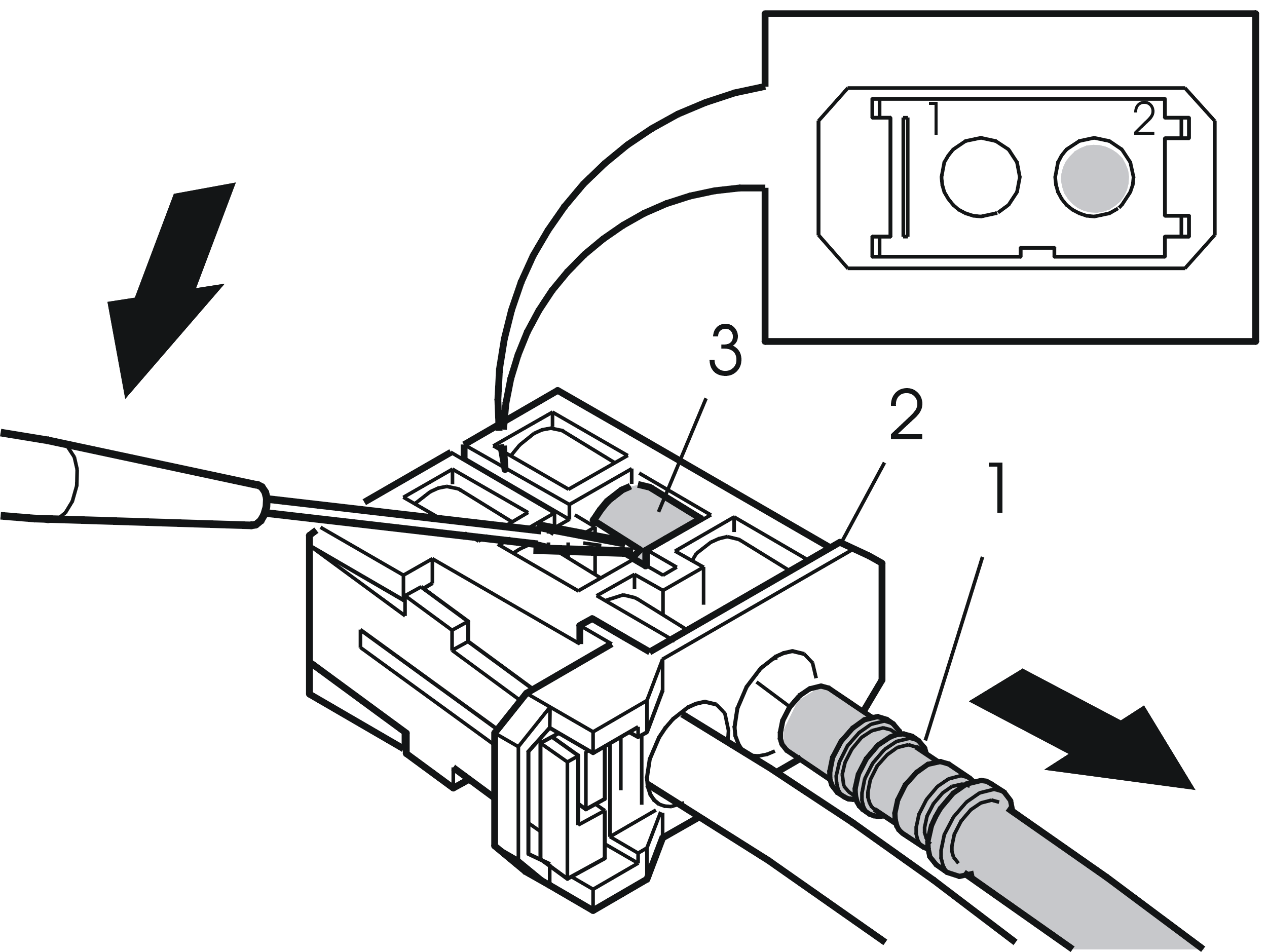

Fig 2: Identifying Catches Opened With Screwdriver To Pull Out Ferrule

Courtesy of VOLVO CARS CORPORATION

Open the catches (3) using a screwdriver.

Pull out the ferrule (1). Make a note of its location.
