Install transmission cable on transmission

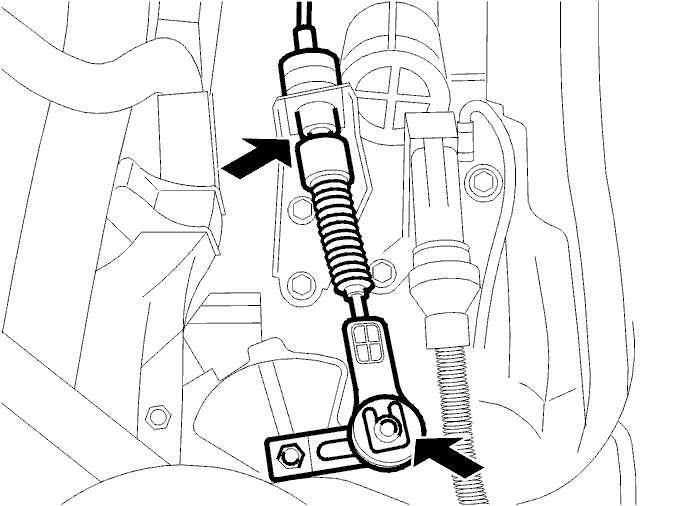

Fig 1: Identifying Transmission Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

• the transmission cable on the bracket
• the transmission cable on the transmission lever with the retaining clip.

Check that the gear positions are working
