Removing the Skid Plate

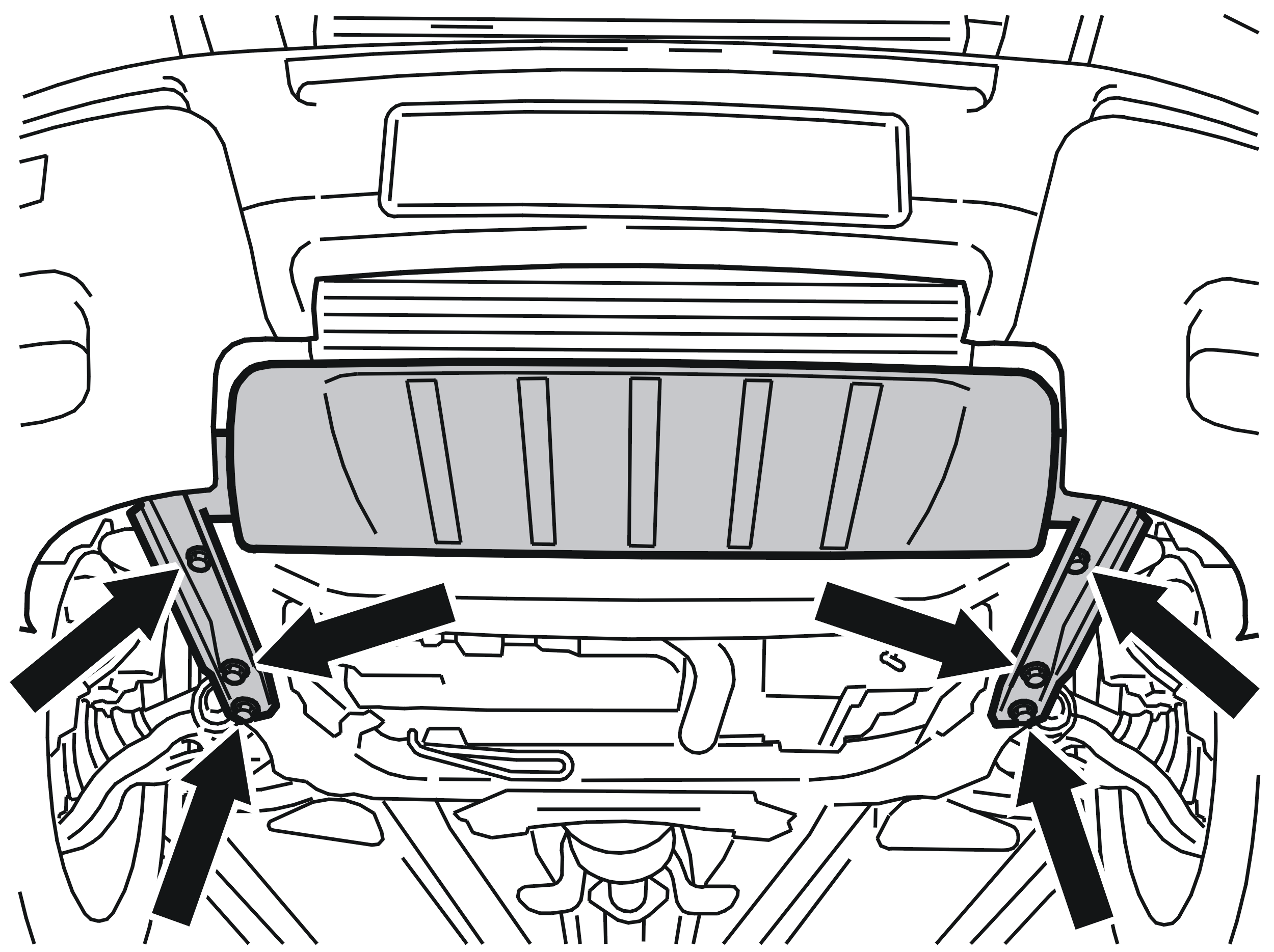

Fig 1: Splash Guard. Protective Plate And Screws

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the 6 screws.

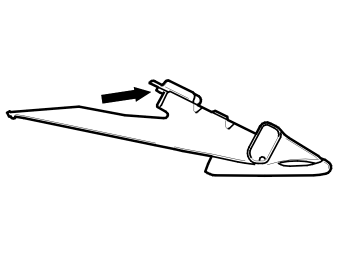

Fig 2: Identifying Protective Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Lift and slide the splash guard forward.

Remove the protective plate.

NOTE: There is a guide sleeve on the upper mounting for the plate. This must be lifted slightly so that the panel can be slid forward.
