Installing The Balls For The Control System Housing

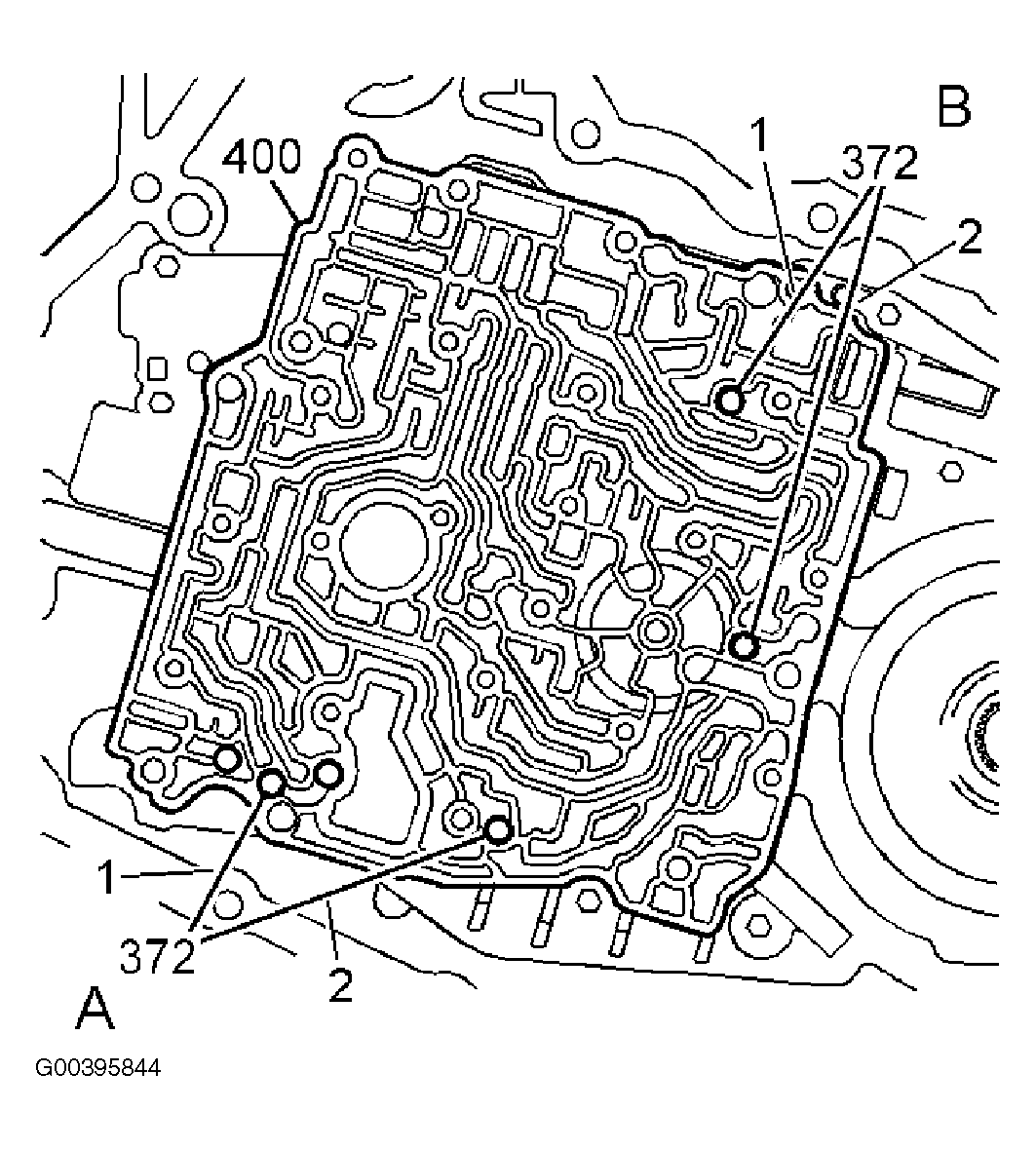

Apply petroleum jelly (P/N 116 11 51-4) to each duct (372) for the balls. Reinstall the balls. See Figure. Ensure that the petroleum jelly holds the balls in place in the housing.
