DTC SRS 0210-0219 Front Impact Sensor (88-43)

Publication date: 2006-08-03
Reference number: 88-43

DTC SRS 0210-0219 FRONT IMPACT SENSOR

TECHNICAL SERVICE BULLETIN

Reference Number(s): 88-43, Date of Issue: August 03, 2006

VOLVO:	2003-2005 - XC90
CHASSIS:	000690-203742
GROUP:	88
NO.:	43

DESCRIPTION

The SRS (Supplemental Restraint System) ECU may set DTC 0210-0219 due to faulty signal from the front impact sensor on the left and/or right side. When a DTC is set, the SRS warning lamp will be lit.

A sensor with improved plastic housing (p/n 30724677) has been introduced in production. (Previous p/n was 30682590.)

SERVICE

Always replace both front impact sensors with the new sensor, p/n 30724677. Follow the instructions in VIDA for each sensor: Information > Repair > Repair, removal & installation > 8 Body and interior > 88 Interior equipment > Seat belts and other retention systems > Collision sensor front, replacing

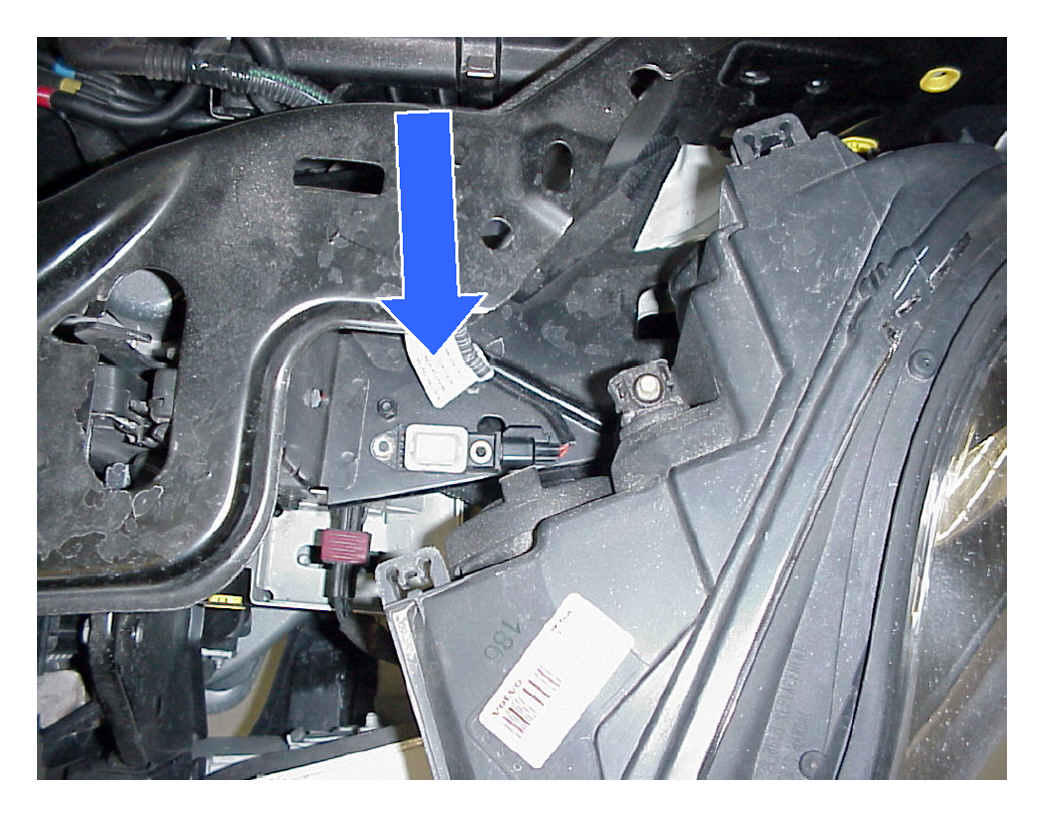

← Front impact sensor location (left side)

Fig 1: Locating Front Impact Sensor

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check the male terminals in the front impact sensor and the female terminals in the vehicle harness connector for corrosion. Replace cable harness, p/n 8691056, if necessary.

WARRANTY CLAIM INFORMATION

LABOR OP	LABOR DESCRIPTION	LABOR TIME
88454-2	Collision sensor front X1 replace	0.4 h
Claims may be submitted under the New Car Warranty when there is a verified customer complaint using claim type 01.
