Installing components

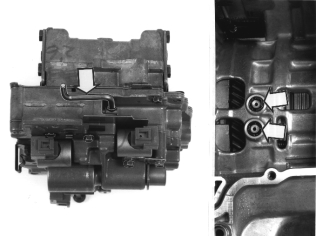

Fig 1: Identifying Gear Selector Slide & New Seals
GLL109126Courtesy of VOLVO CARS OF NORTH AMERICA.

Reinstall gear selector slide in control system as shown.

Install new seals in transmission.

Use gasolineeum jelly to hold seals in position.
