Replacing lock function: Removing

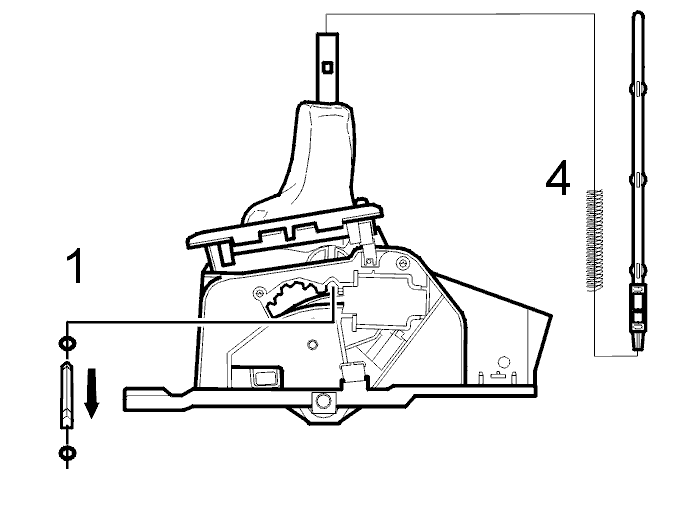

Fig 1: Identifying Pawl, Push Rod And Spring

Courtesy of VOLVO CARS OF NORTH AMERICA.

Make a note of the anti-theft radio code.

Remove:

• Battery negative lead.
• Gear selector knob according to Removing gear selector knob .
• Center console according to Removing passenger compartment components .

Pull out pawl (1) with round-nosed pliers.

Remove push rod and spring (4). If necessary, use a thin, bent welding rod to lift up the spring.
