Installing The Backrest Padding
- Check the rubber and spring inside
- Position the padding

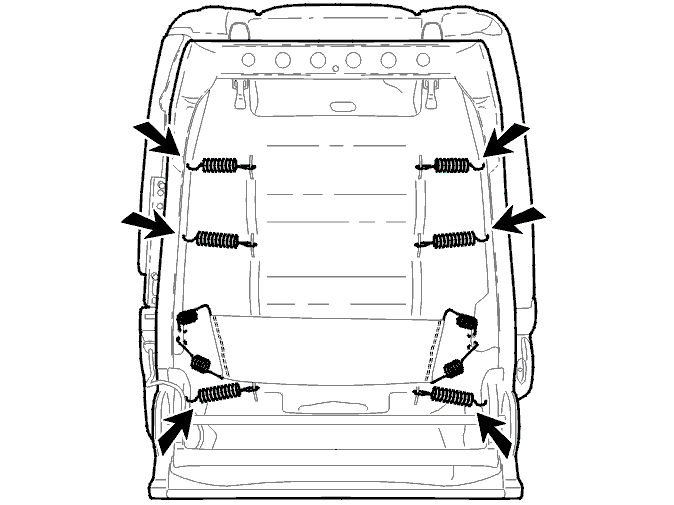

- Hook the springs into place according to the instructions.
With heater panel:
- Install the heater pad according to Heater pad backrest, replacing
- Route and secure the cable
- Connect the connectors.

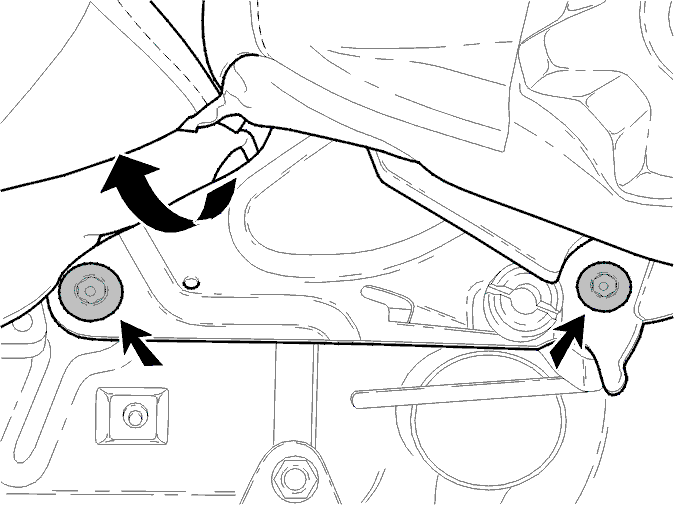

Installing the seat backrest
- Position the backrest on the frame. Finger tighten the 4 screws
- Tighten the screws. Tighten to: 48 Nm
- Insert the SRS ignition cable. Tighten it as above
- Install the upholstery.

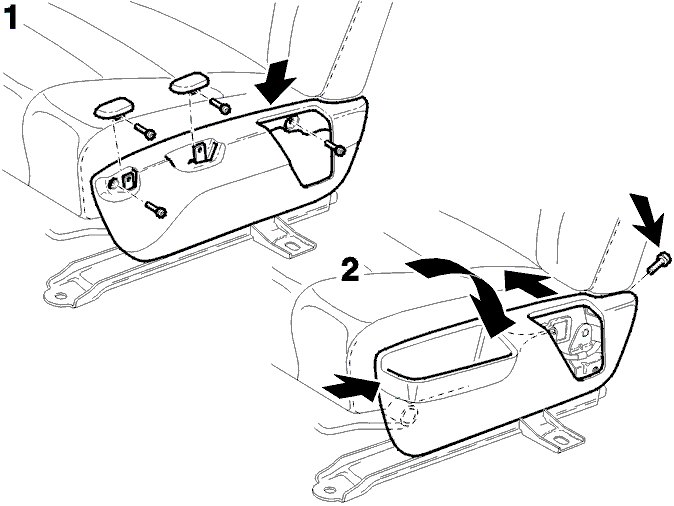

Installing the side panel on the seat
Adjustable seats:
- Press the panel into place above the adjustment handle
- Secure the panel using the screws
- Position the knobs. Secure the knobs with the screws.
Non-adjustable seats:
- Hook the panel into place at the front
- Position the screw on the reverse. Tighten the screw.
Installing armrests (if applicable)
- Clean the mating surface
- Install the armrest. Secure the armrest with the retaining clip (A).
Installing head restraints
NOTE:
Head restraints must be properly secured to the seat. Check by pulling the head restraint.
Installing seats
Reinstall the seat in the car. See Replace the complete front seat (-1999) or Front seat, replacing (2000-).
