Rear wheel sensor, replacement
>>
Removing the rear wheel sensor
Removing the rear wheel sensor

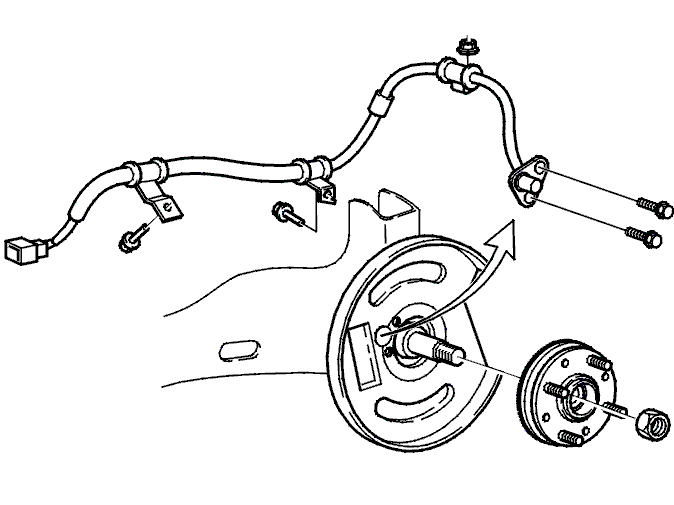

Fig 1: Identifying Sensor Cable And Sensor Mounting Bolts
Courtesy of VOLVO CARS OF NORTH AMERICA.
NOTE:
Carefully clean the sensor and the connector before they are removed.
Remove
the sensor cable from the support.
the mounting bolts and the sensor.
Courtesy of VOLVO CARS OF NORTH AMERICA.
