Installing the headlining

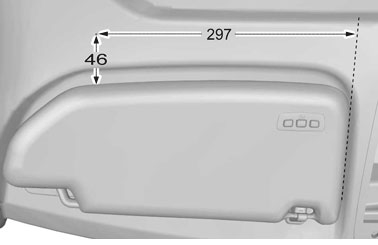

Fig 1: Identifying Measurement

Courtesy of VOLVO CARS OF NORTH AMERICA.

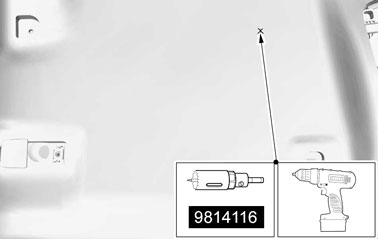

Fig 2: Identifying Hole Saw Special Tool For Headlining Installation

Courtesy of VOLVO CARS OF NORTH AMERICA.

9814116

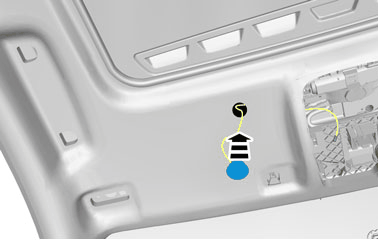

Fig 3: Identifying Pass-Through Hole For Cable

Courtesy of VOLVO CARS OF NORTH AMERICA.

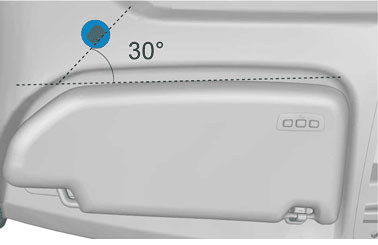

Fig 4: Identifying Angle Measurement

Courtesy of VOLVO CARS OF NORTH AMERICA.

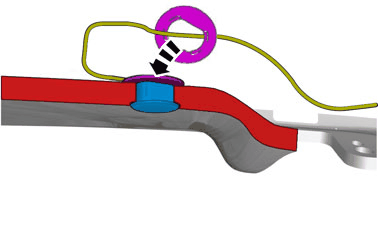

Fig 5: Identifying Cable Clip

Courtesy of VOLVO CARS OF NORTH AMERICA.

• the clips to the cable for the reading lamp
• the washer hose at the tailgate
• the washer hose at the A-post
• A-pillar panel. Panel, A-post, replacing
• C-pillar panel. Panel, C-post, replacing
• D-pillar panel. Panel, D-post, replacing
• Cantrail panel. Panel, cantrail, replacing
• the roof clip.
• the connector for the rear reading lamp
• the rear reading lamp Bulb, reading lamp, rear, replacing
• the mounting for the cargo net
• the grab handle
• the roof module Upper electronic module (UEM)/rearview mirror, replacing
• the sun visors. Sun visor, replacing

Connect the battery lead. Battery, disconnecting
