Removing The Audio Module (AUD)

WARNING: This page is about a different variant/trim than selected.

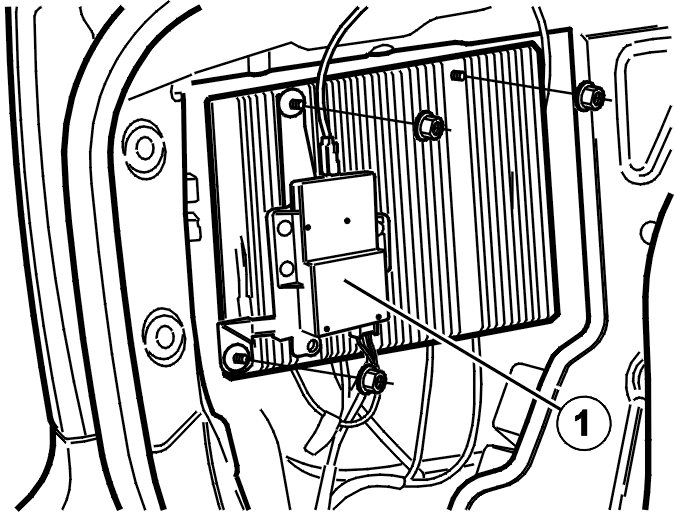

Fig 1: Identifying Audio Module (AUD) Nuts

Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the cargo compartment side panel to one side. See SIDE PANEL LOADSPACE .

Remove:

Disconnect the connectors.

NOTE: If the vehicle is equipped with global positioning system module (GPS) (1), it must be transferred to the new audio module (AUD).
