Distribution Plate

Remove the locking pin (368) (can be reused). See Fig 1. Lift up the distribution plate together with gasket C.

NOTE: Do not damage the two small strainers on the distribution plate.

Lift out gasket V.

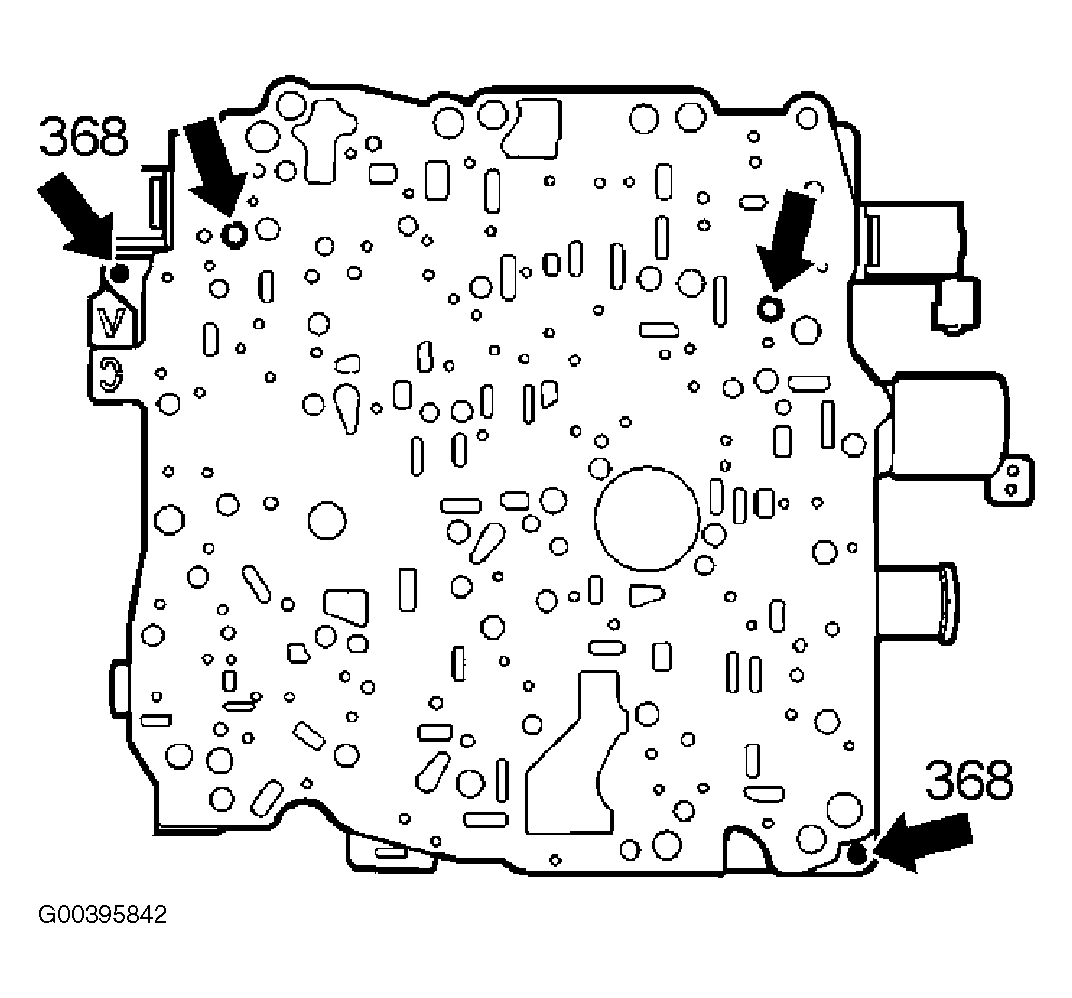

Fig 1: Removing Distribution Plate
G00395842Courtesy of VOLVO CARS OF NORTH AMERICA.
