Removing The Right Engine Mounting

Slacken off the right lower front part of the finder liner.

Remove:

• the plastic nuts on the fender liner. See Fig 1.
• the protective plate.

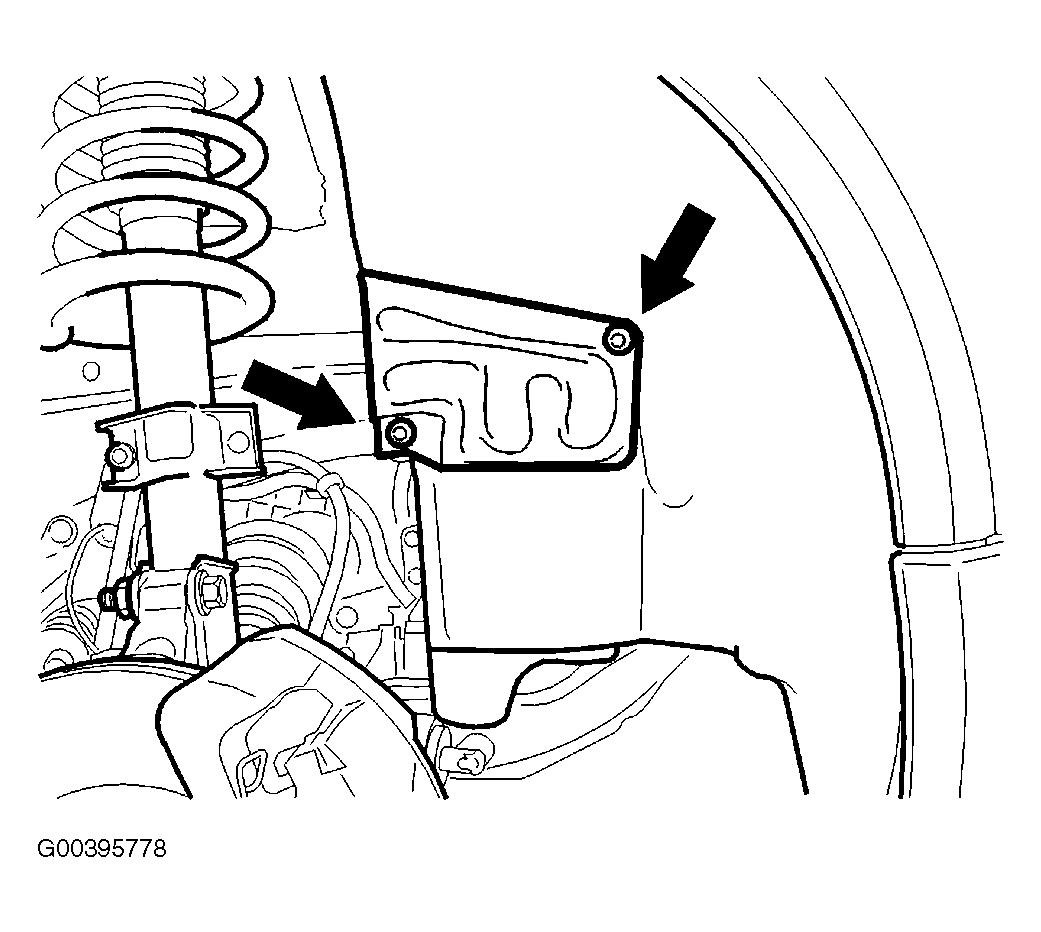

Fig 1: Removing Fender Liner Protective Plate

Courtesy of VOLVO CARS OF NORTH AMERICA.

Bend out the fender liner.

Remove both the right hand engine mounting screws (1). See Fig 2.

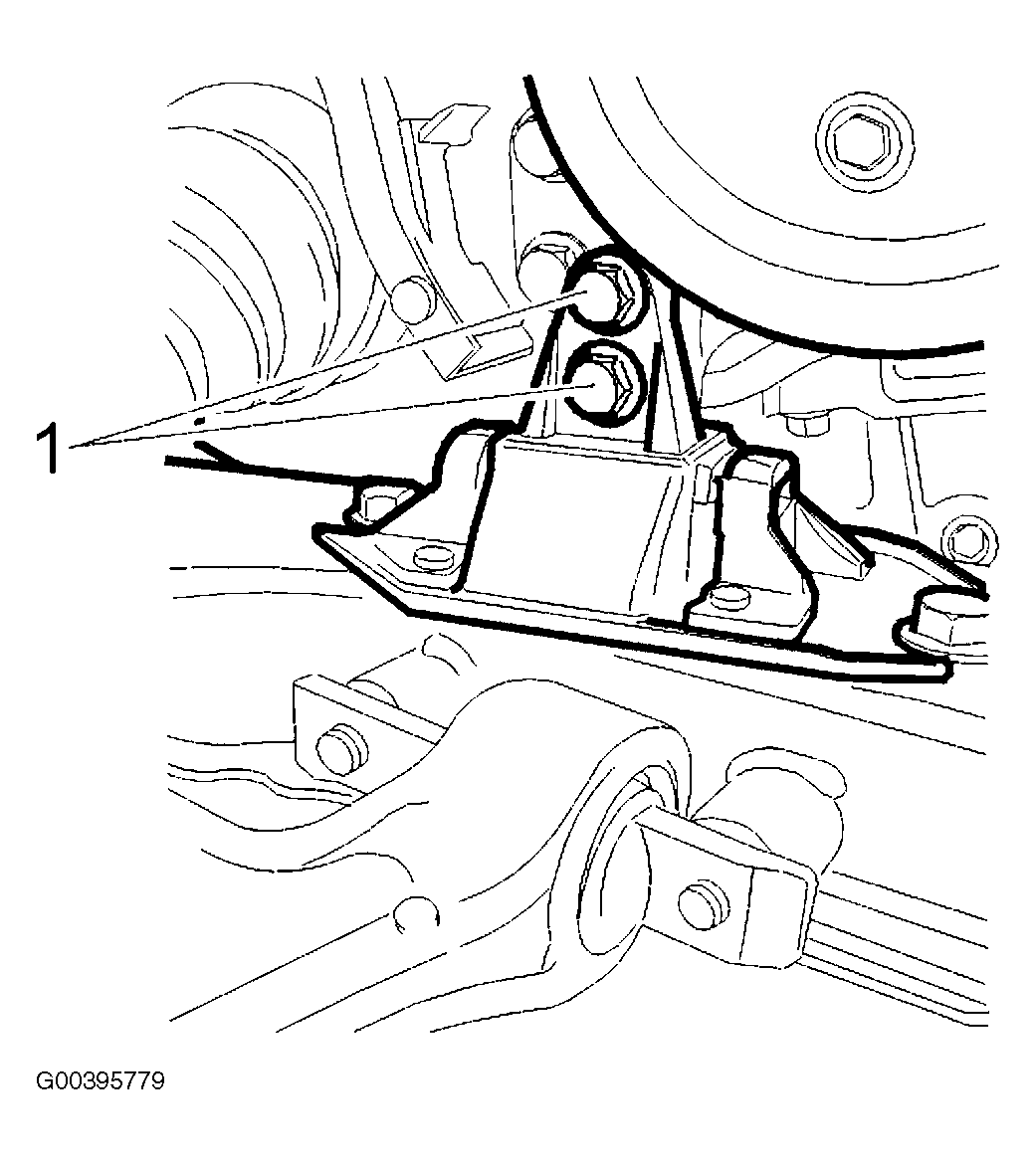

Fig 2: Removing Engine Mounting Bolts

Courtesy of VOLVO CARS OF NORTH AMERICA.
