Replacing Sealing Rings

Remove the sealing rings from the transmission. See Fig 1.

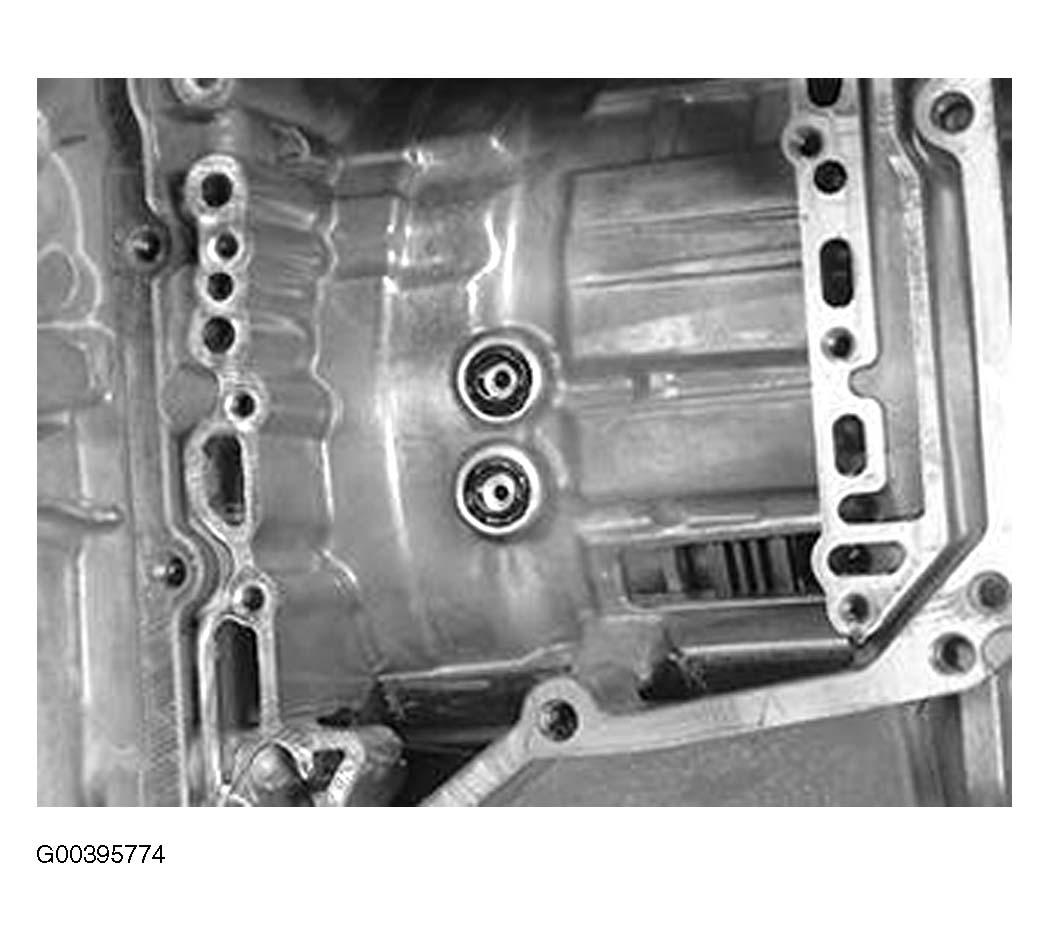

Fig 1: Locating Sealing Rings In Transmission

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: Ensure that no debris enters the transmission.

Install new sealing rings in the transmission Use petroleum jelly to hold the seals in position.
