Replacing The Control System: Preparations

Remove. See CABLE HARNESS / OIL TEMPERATURE SENSOR, REPLACING .

Remove:

• the connectors for the solenoid valves. See Fig 1.
• the screw for the oil temperature sensor holder. Remove the sensor from the control system
• the cable harness from the holders on the control system.

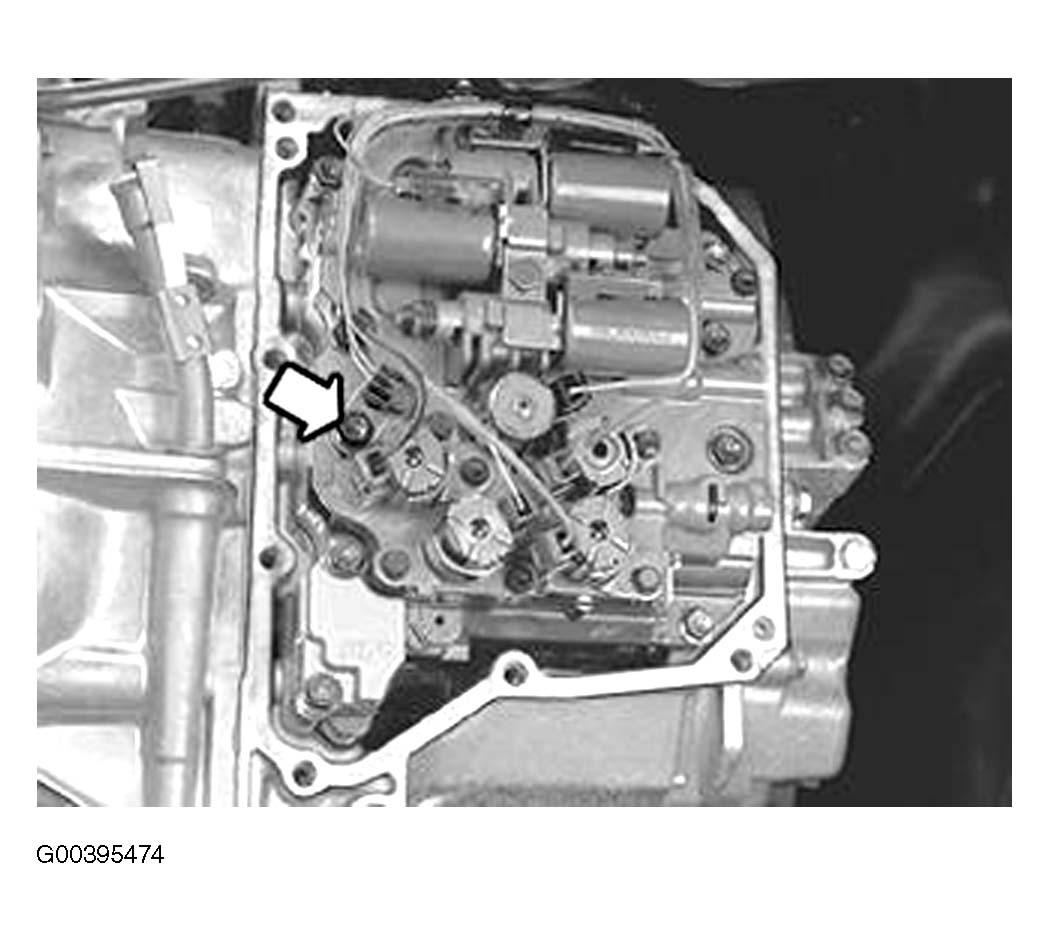

Fig 1: Removing Cable Harness

Courtesy of VOLVO CARS OF NORTH AMERICA.

Push the cable harness to one side.
