Replacing The Control System: Finishing

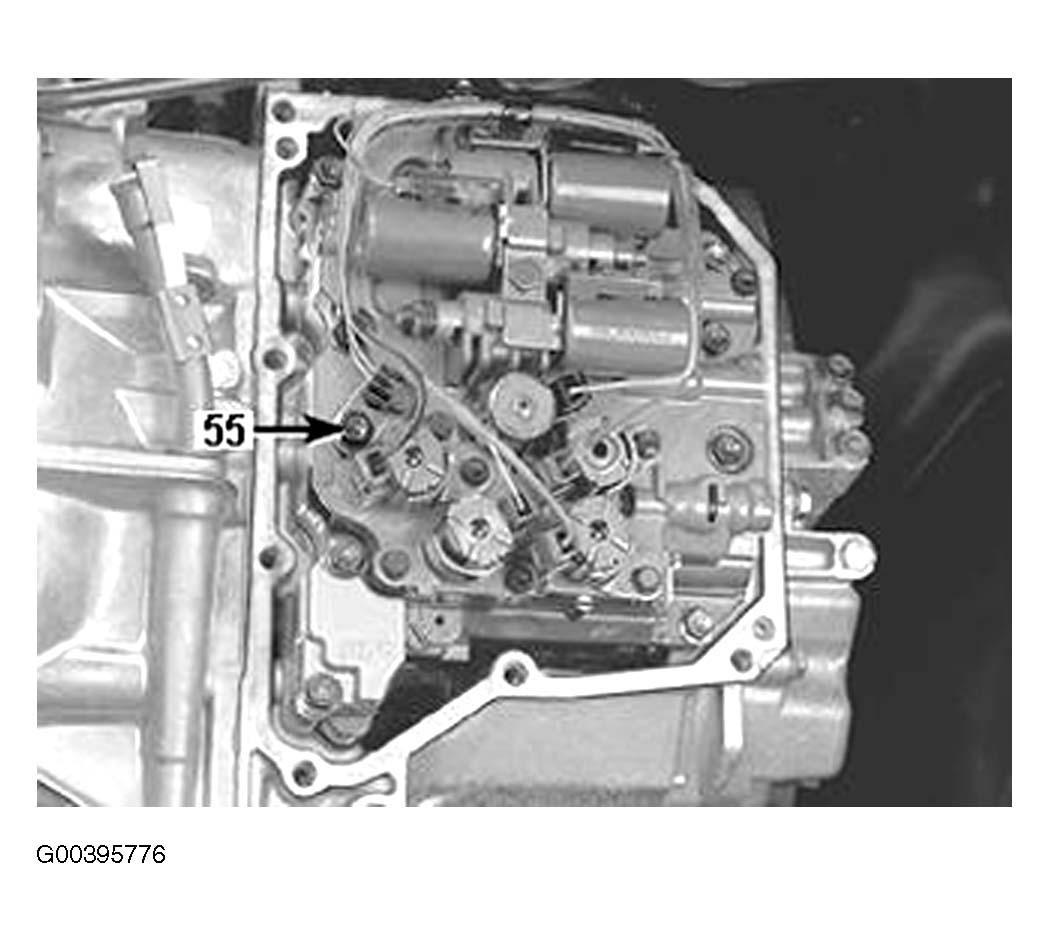

Install the cable harness. Connect the connectors to the solenoids. Install the oil temperature sensor with the holder and the screw. See Fig 1. Note that the length of the screw is given in mm. Tighten to 10 Nm. Install the cable harness on the holder. Check that the cable harness is correctly positioned. Reinstall. See CABLE HARNESS / OIL TEMPERATURE SENSOR, REPLACING .
